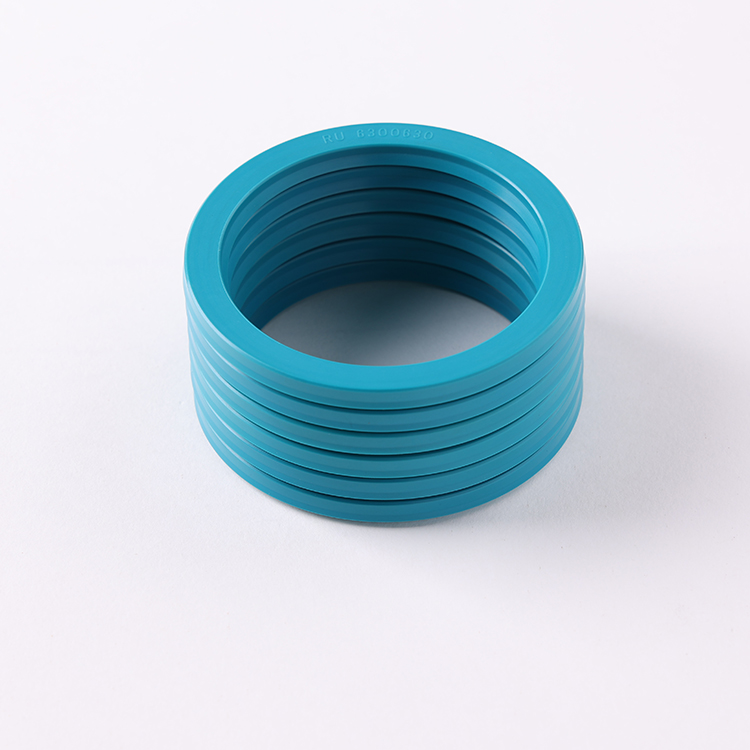

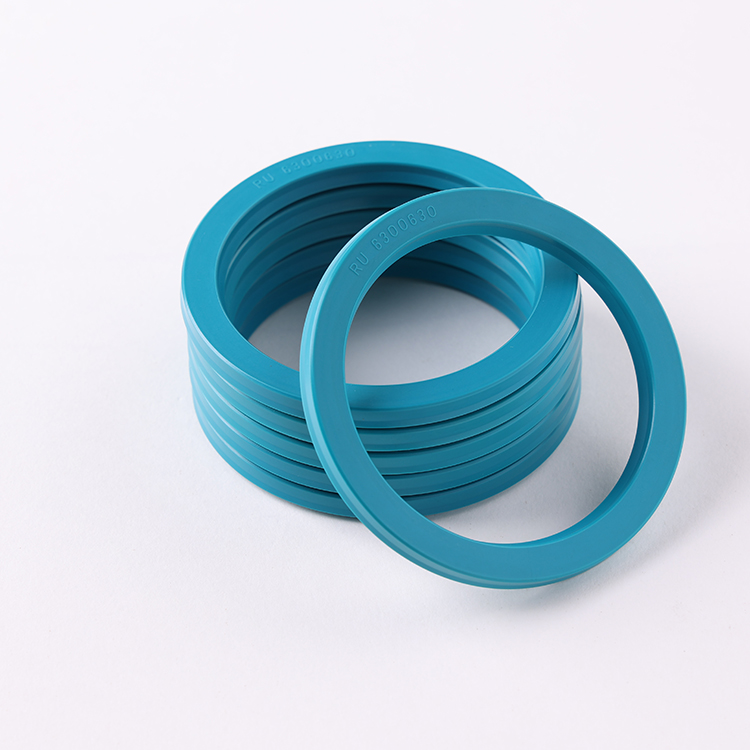

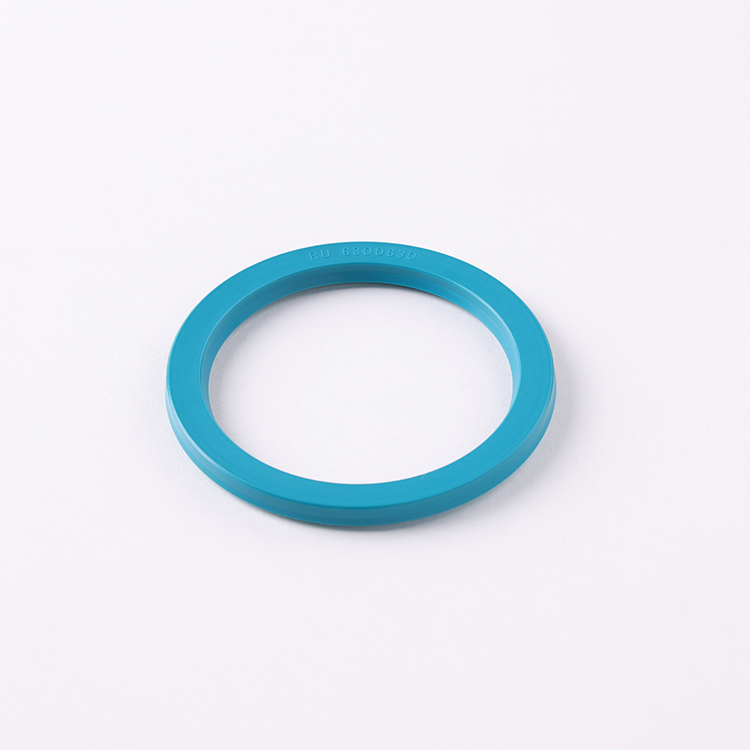

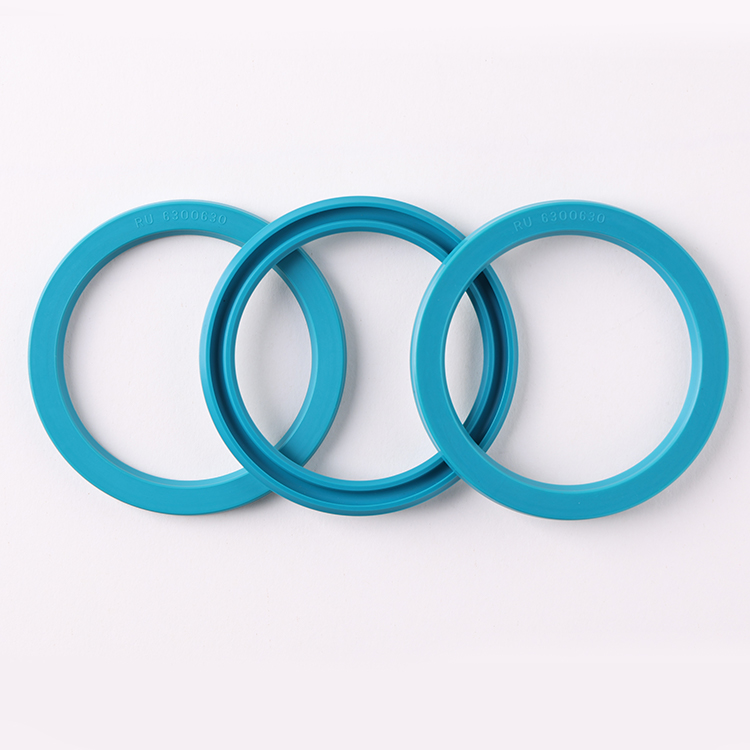

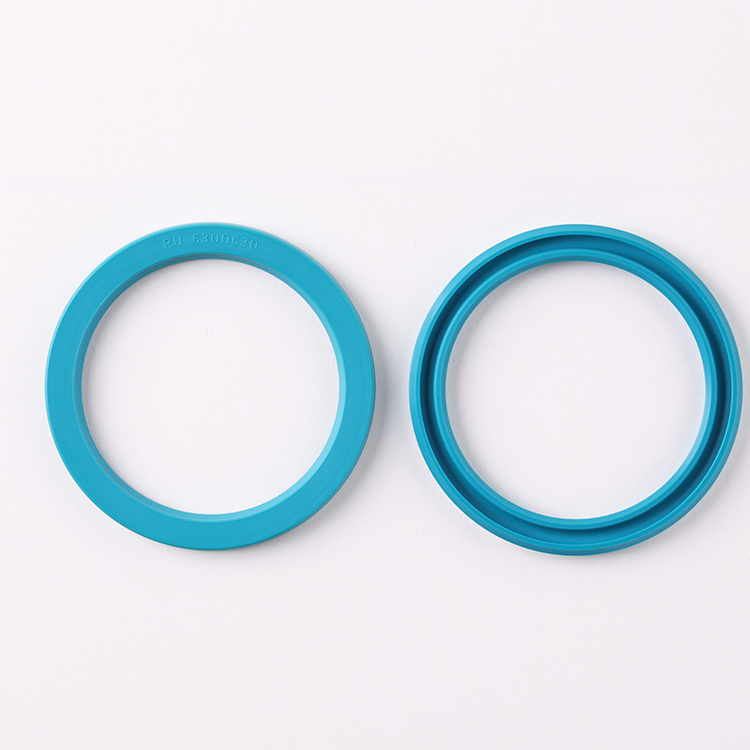

Excellent Low-Pressure Sealing Single-Acting PU+NBR U-Cup Hydraulic Linear Rod Seal Reciprocating Seal for General Hydraulic Cylinders

Home » Products » Hydraulic Seal » Excellent Low-Pressure Sealing Single-Acting PU+NBR U-Cup Hydraulic Linear Rod Seal Reciprocating Seal for General Hydraulic Cylinders

Excellent Low-Pressure Sealing Single-Acting PU+NBR U-Cup Hydraulic Linear Rod Seal Reciprocating Seal for General Hydraulic Cylinders

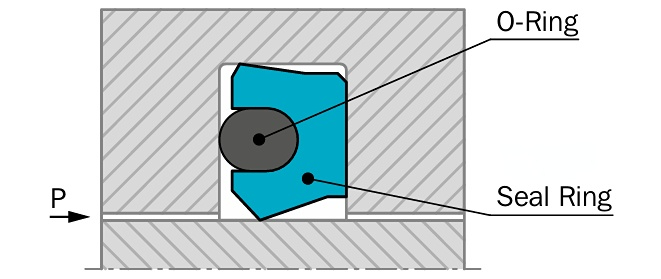

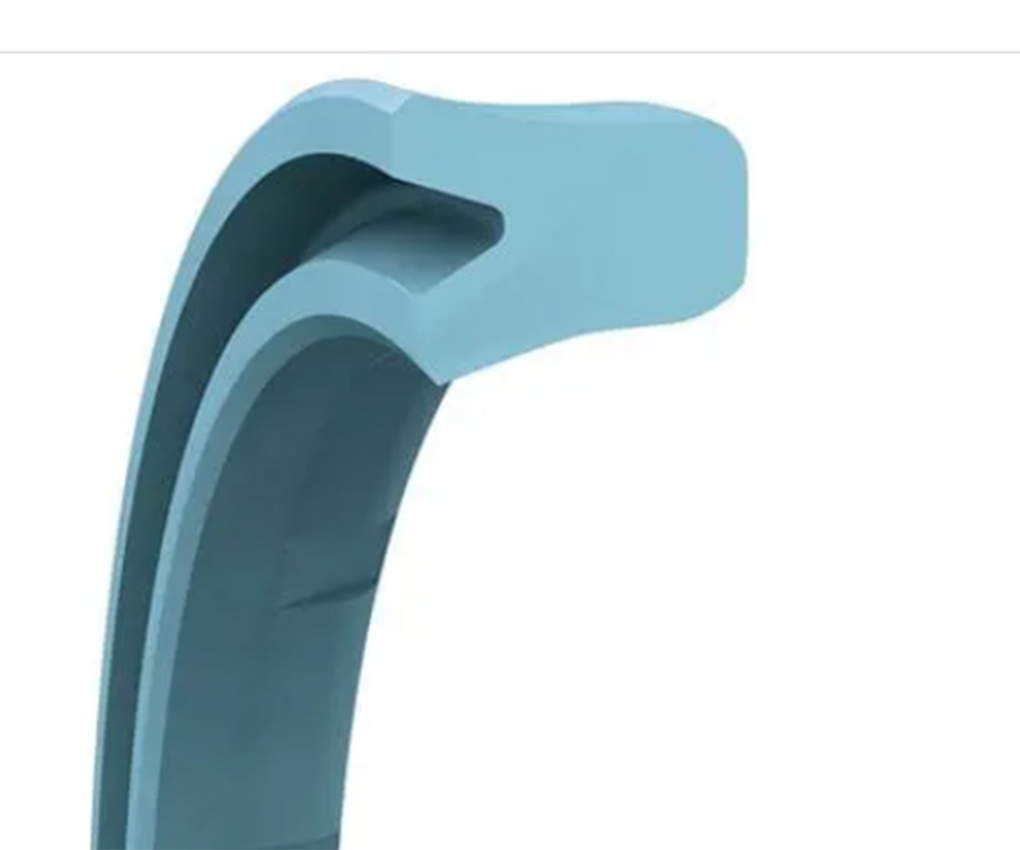

The U-Cup type MU6 has been developped as an injection molded seal of polyurethane material to fit in the same ISO housings. The integrated NBR O-Ring improves the performance at low pressure and low temperature applications

Model:
MU6
Brand:
HSCO

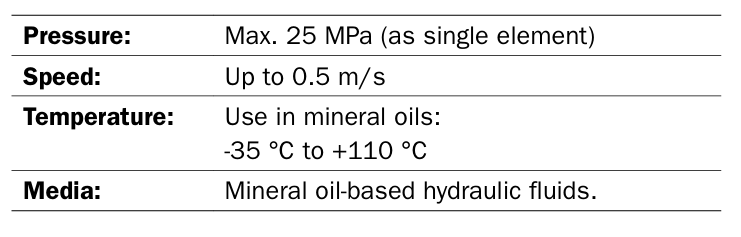

Temperature:
-35 °C to +110 °C
Certification:
ISO9001
Media:
Mineral oil based hydraulic fluids
Standard:
standard
Maximum Pressure:
25 MPa
Material:
PU+NBR
Type:
Hydraulic Seal
Origin:
China
OEM&ODM:
OEM
After Warranty Service:
1Year
Guarantee Time:
1Year
Product Name:
MU6 Series Rod Seal
Transport Package:
Customizable
Usage:
Cylinder
Speed:
Up to 0.5 m/s
Standard or Nonstandard:
Standanrd
Specification:
Customizable

Availability:

Quantity:



Inquire Add to Basket

Description

|

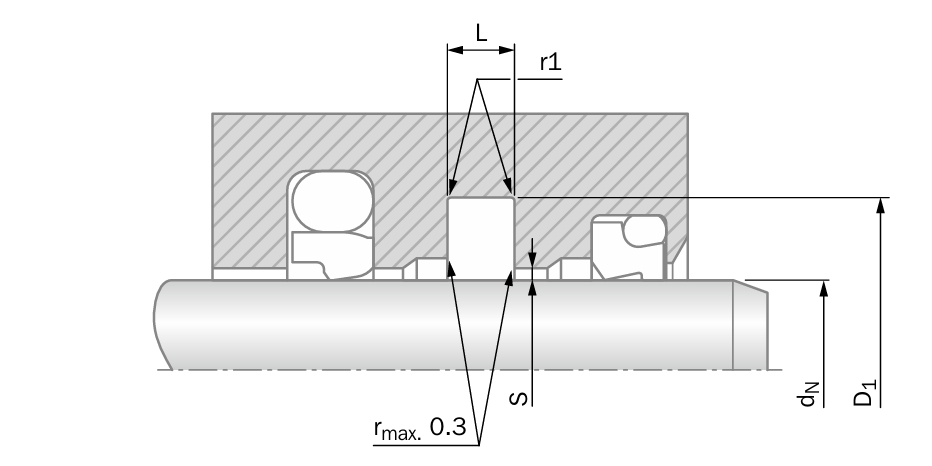

Design introduction

The U-Cup type MU6 can be installed as a single seal for low to medium duty applications; for sealing systems, the U-Cup MU6 shall be installed mainly as a secondary seal

Advantages
