WG
HSCO
-45 °C to +200 °C
ISO9001
Mineral oil-based hydraulic fluids, flame retardant hydraulic fluids, environmentally friendly hydraulic fluids
Up to 60 MPa
PTFE+Rubber（NBR/FKM）
Hydraulic Seal
China
OEM
1Year
1Year

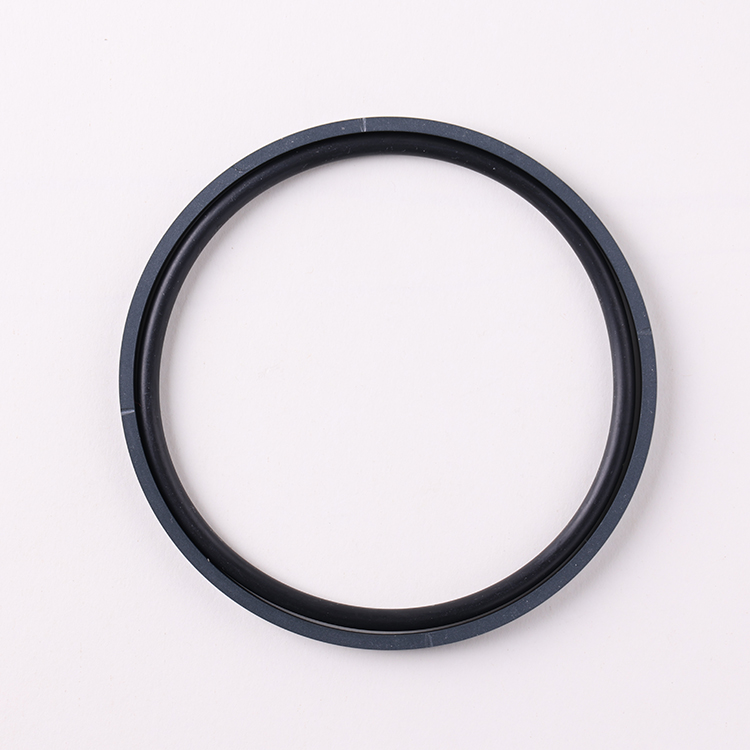

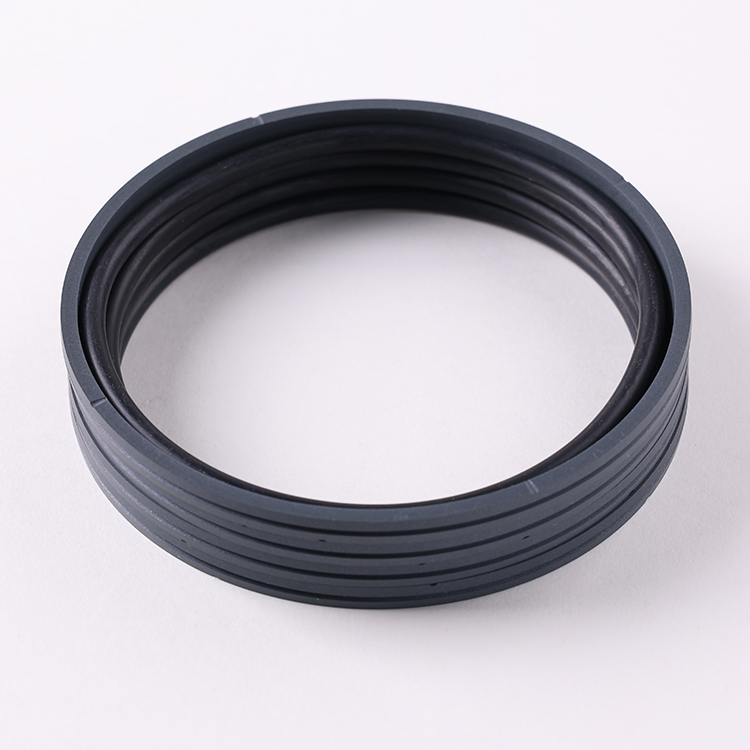

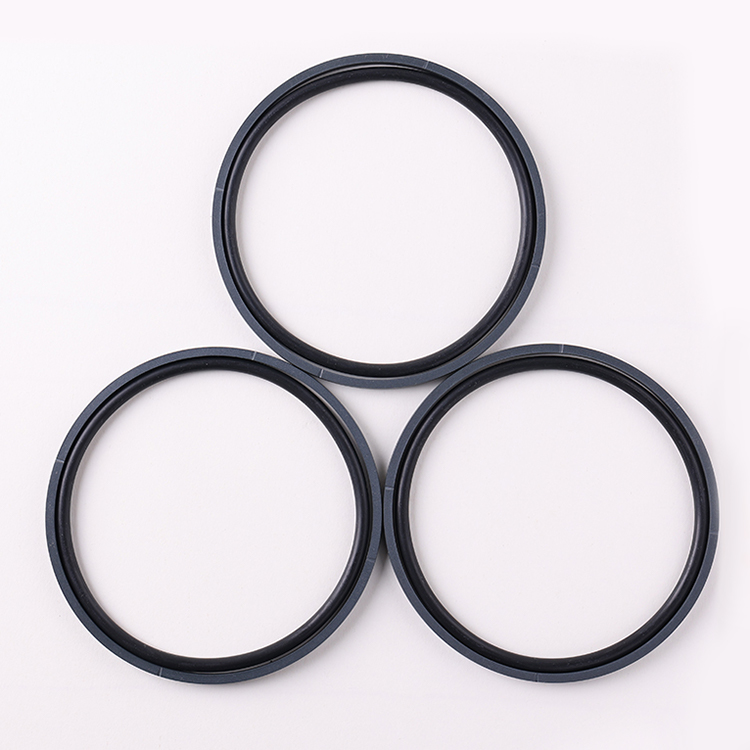

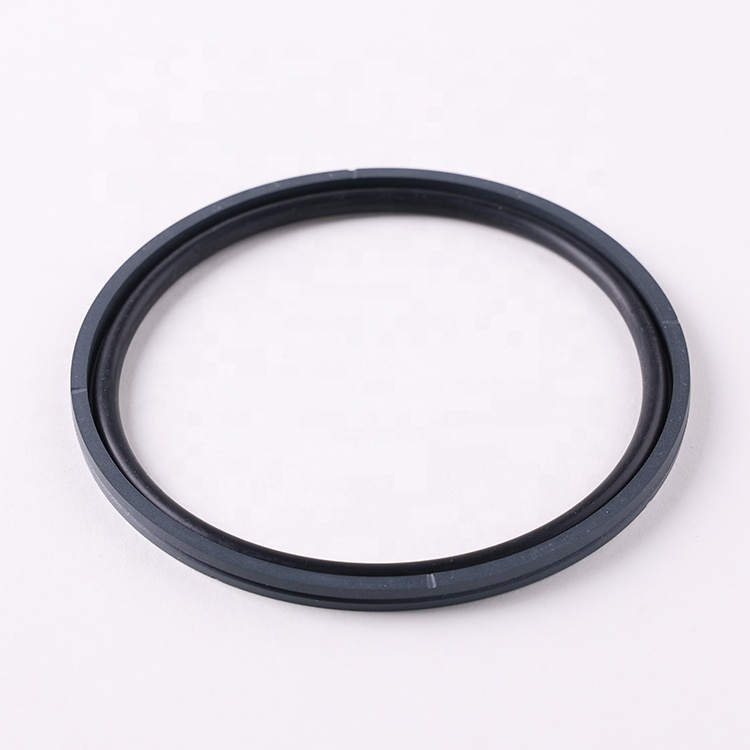

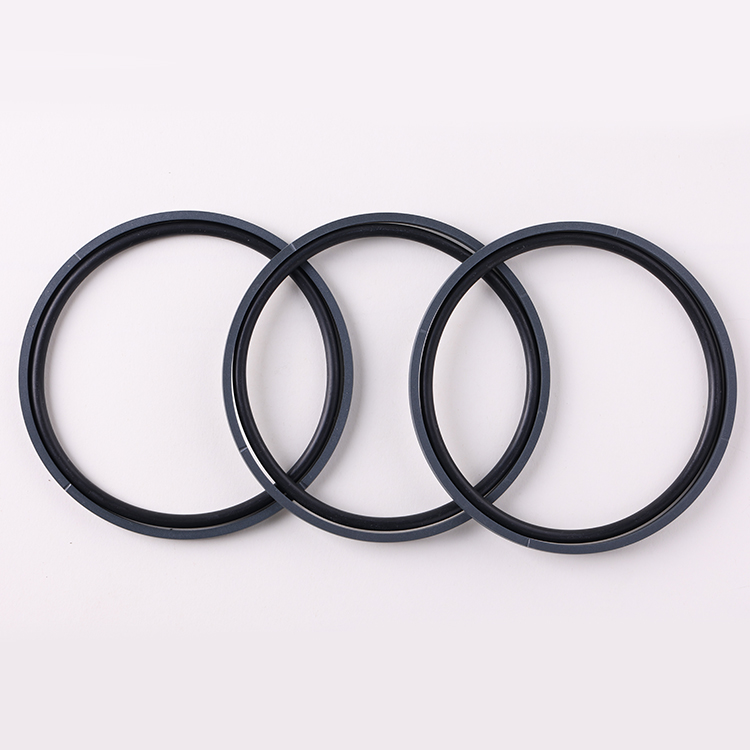

WG Series Piston Seal
Injection molding machines -Machine tools -Presses
Customizable
Cylinder
Up to 15 m/s
Standanrd
Customizable
| Availability: | |
|---|---|
| Quantity: | |
|
Design introduction

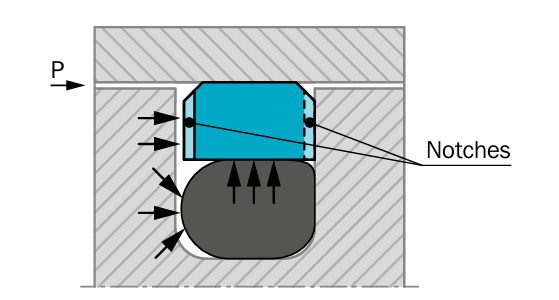

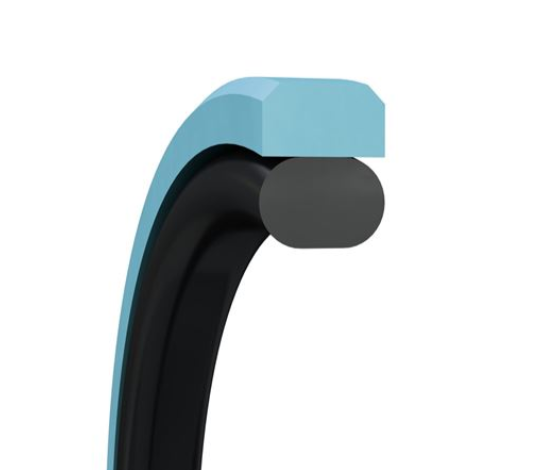

The double-acting Seal is a combination of a Rubber Material based slipper seal and an energizing O-Ring. It has an interference fit which together with the squeeze of the O-Ring ensures a good sealing effect even at low pressure. At higher system pressures, the O-Ring is energised by the fluid, pushing the seal ring against the sealing face with increased force.
Advantages
No stick-slip effect
Minimum static and dynamic friction for a minimum energy loss and operating temperature
High wear resistance
No adhesive effect to the mating surface during long period of inactivity or storage
Available for all cylinder diameters up to 2,700 mm.
|

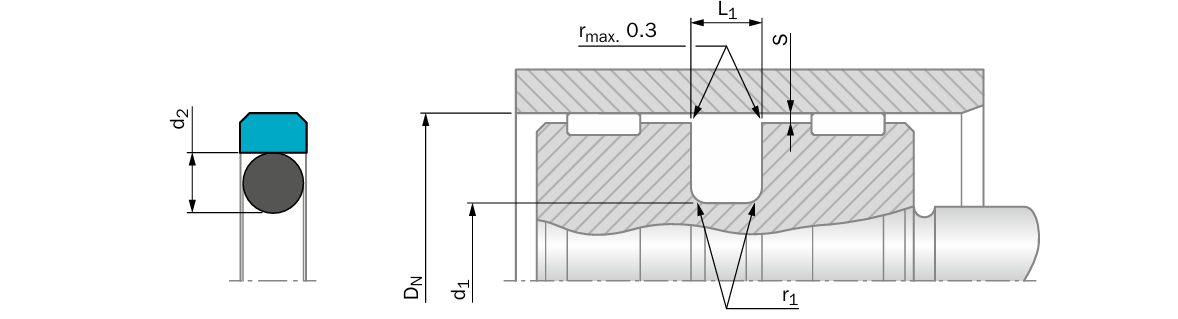

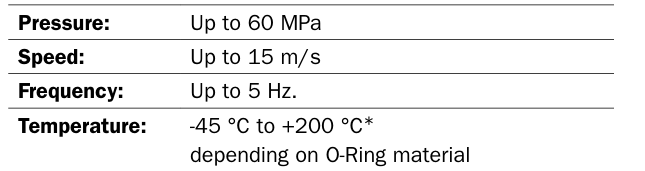

OPERATING CONDITIONS and Installation recommendation

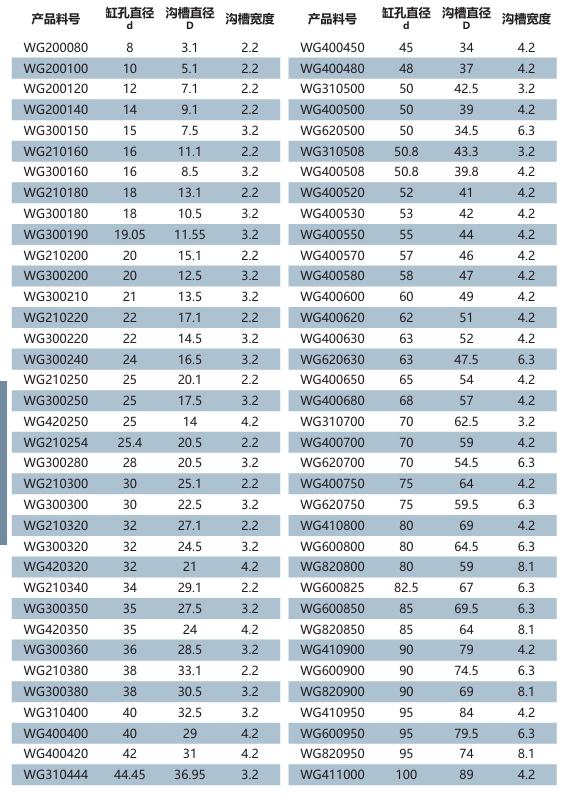

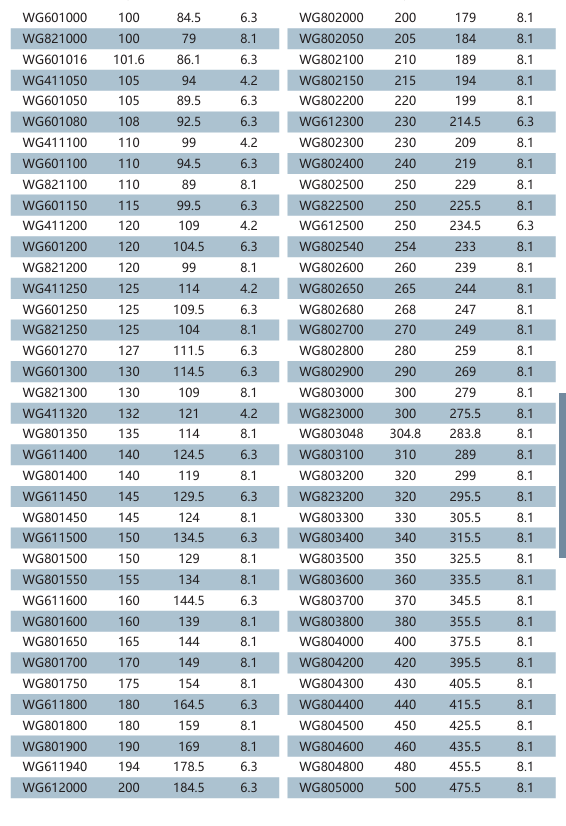

|Specification
|Comment & FAQ
Q2.What is the normal lead time for product orders?
A: Generally it is 5-7days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3. What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.
Q4. why should you buy from us not from other suppliers?
A:OEM&ODM Service Offered ,Provide high quality products with competitive price. Professional QC team control.
Delivery the goods on time
Q5.Can we get a sample for reference?
A: Samples can be sent to you to check the quality, but you should pay for the postage.The charge can be returned when there is an firm order.
Q6.How to check the quality of the bulk order?
A1: We provide preproduction samples before mass production for all customers if needed.
A2: We accept third party inspection such as S G S, TUV, INTERTEK, BV, etc.
Q7. Do you use any international standards for the rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, tolerances as per ISO3302, ISO2768, etc.
Q8.What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, FPM(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.
|
Certification
