MS
HSCO
-45 °C to +200 °C
ISO9001
Mineral oil based hydraulic fluids
Up to 60 MPa peak
PTFE(PU)+NBR/FKM
Hydraulic Seal
Shanghai China
OEM
1Year
1Year

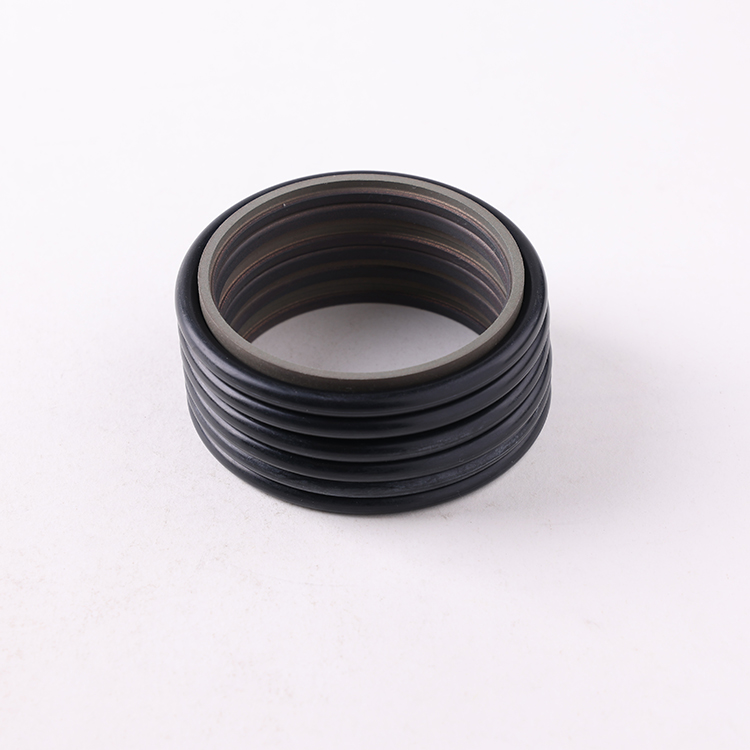

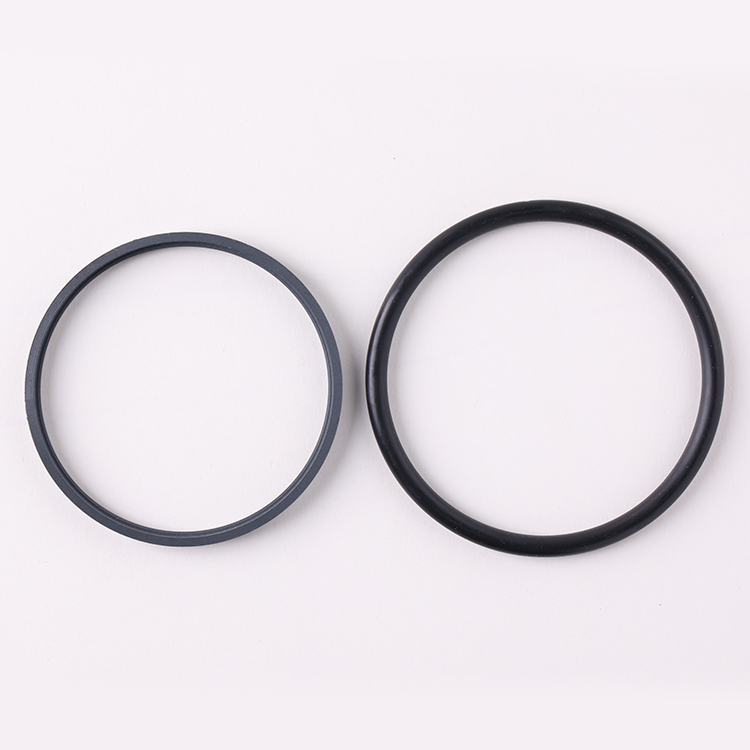

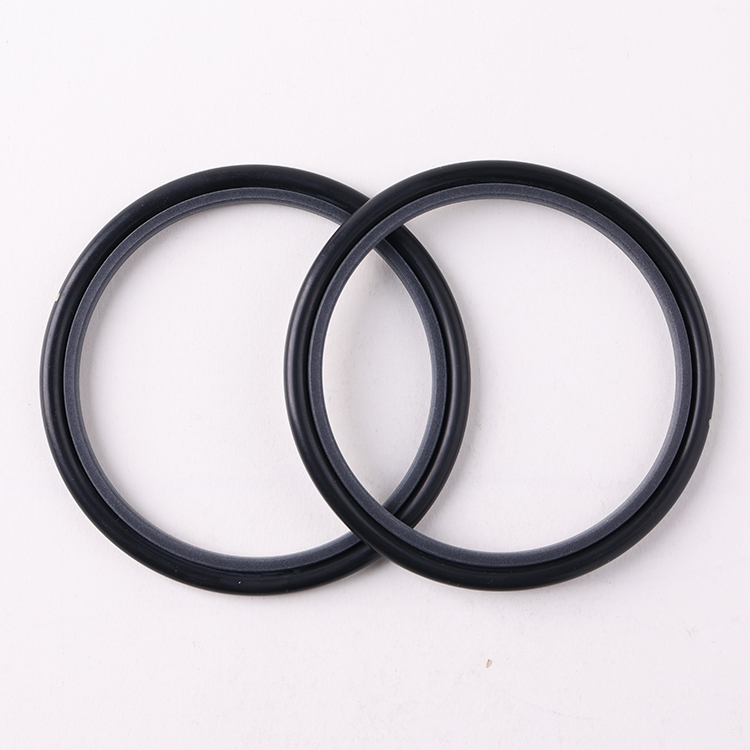

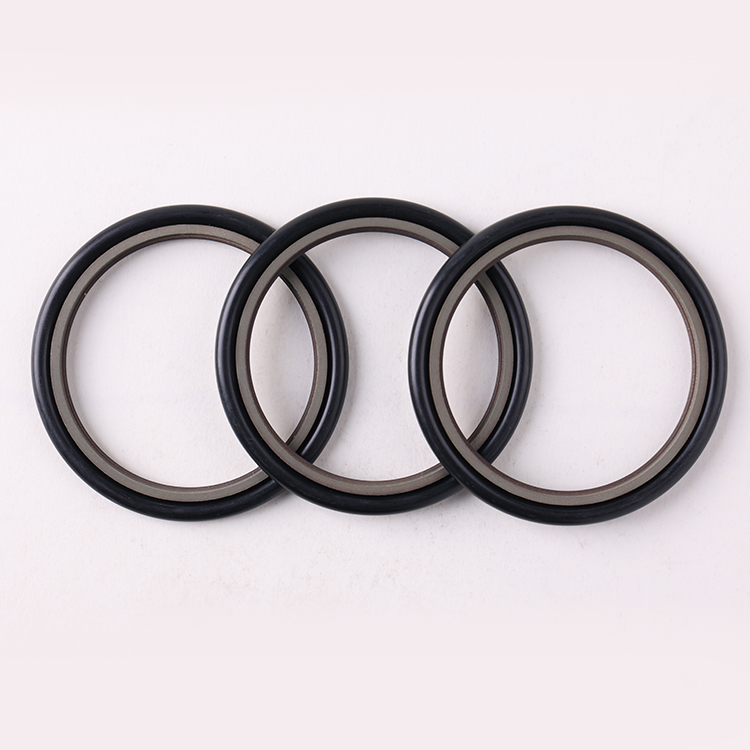

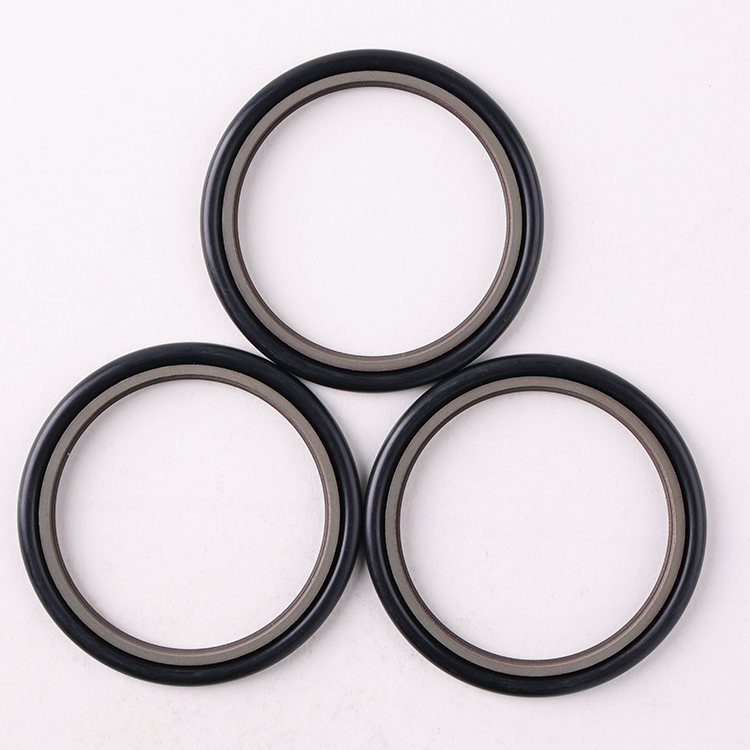

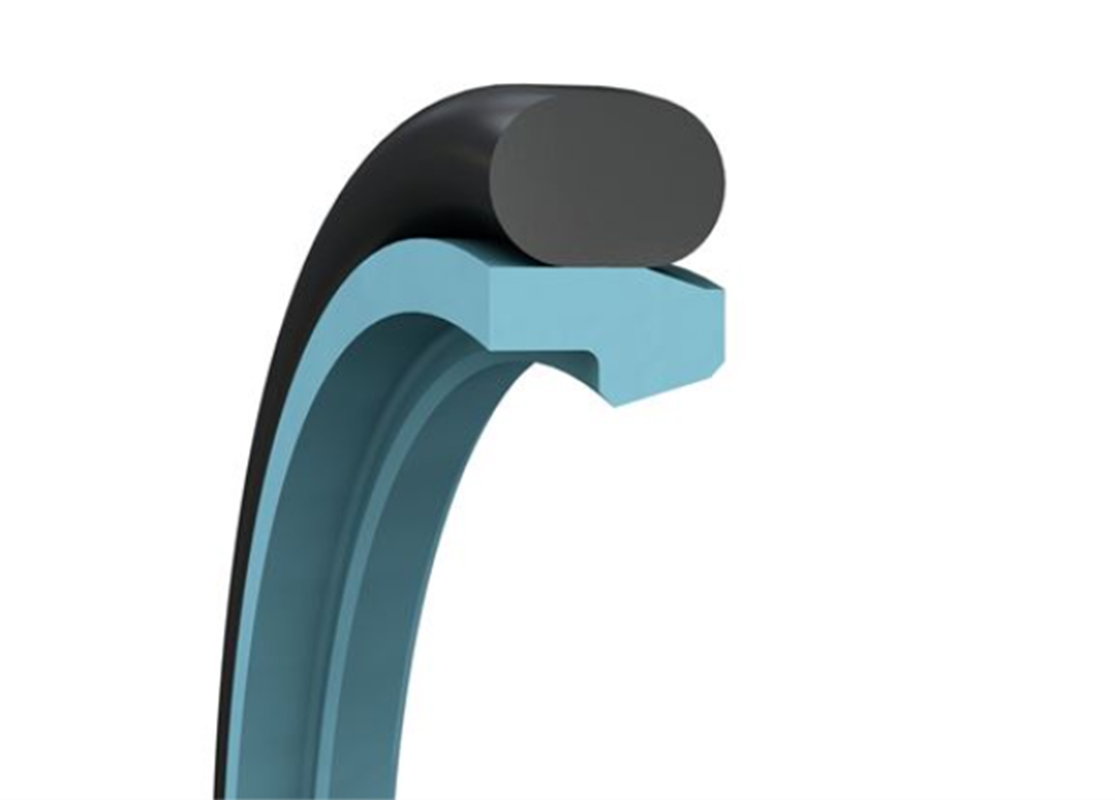

MS Series Rod Seal
Mobile hydraulics -Construction equipment -Mining
Customizable
Cylinder
Up to 15 m/s with reciprocating movements
Standanrd
Customizable
| Availability: | |
|---|---|
| Quantity: | |
|

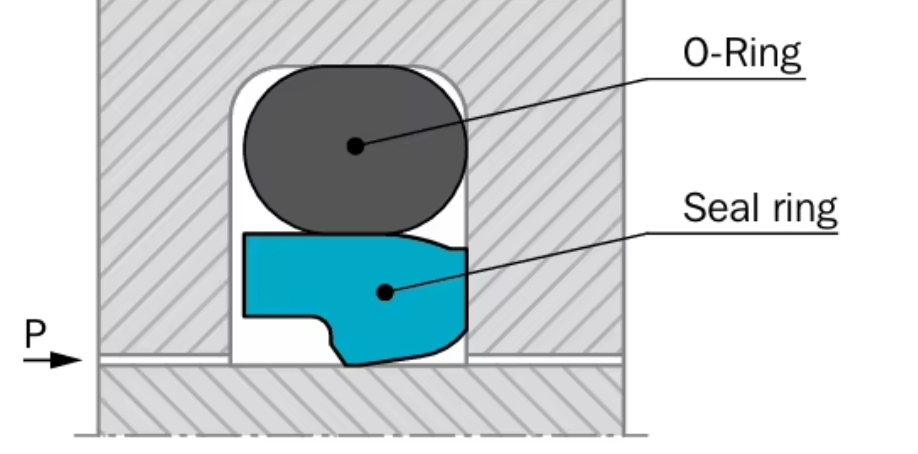

Design introduction
The sealing performance of the stems from its hydrodynamic design. The classic sealing edge creates a steep contact pressure gradient on the high-pressure side and a gentle gradient on the low-pressure side. These controlled pressure gradients reduce fluid adherence to the piston rod during extension and allow the residual fluid film on the rod to be returned to the system on the retraction stroke. This is combined with patented design features that further enhance the performance of the seal under demanding operating conditions.
Advantages
High static and dynamic sealing effect
High extrusion resistance, allowing large hardware clearances
Low friction, high efficiency
Stick-slip free operation
High abrasion resistance, high operational reliability
Wide range of application temperatures and high resistance to chemicals, depending on the choice of O-Ring material
Simple installation without seal edge deformation
Available for all diameters up to 2,600 mm rod diamter
|

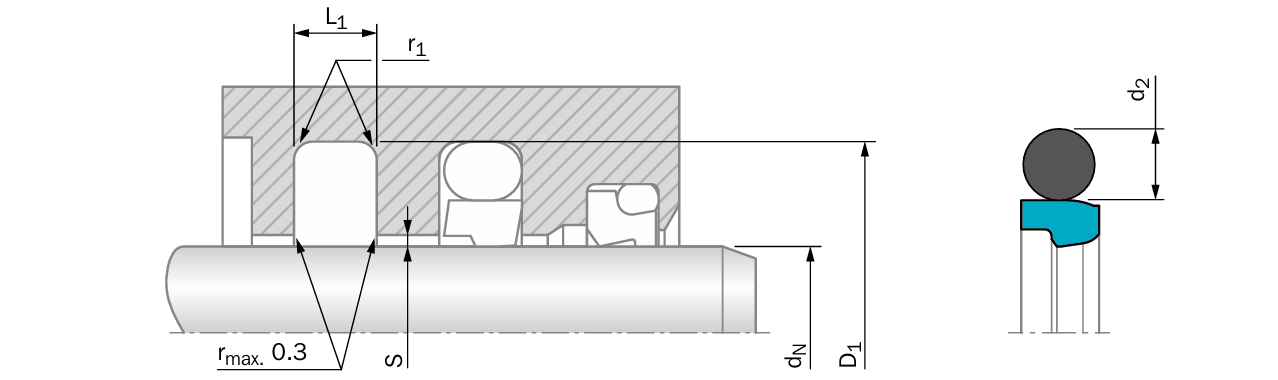

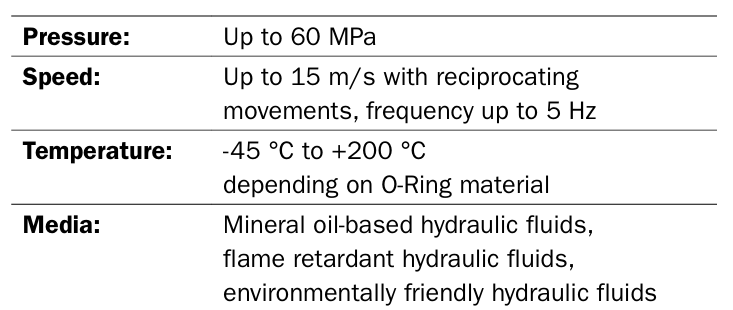

OPERATING CONDITIONS & Installation recommendation

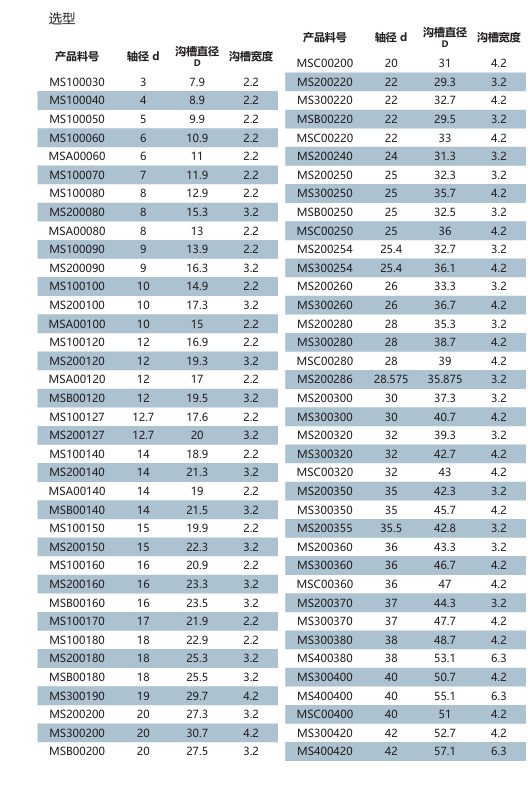

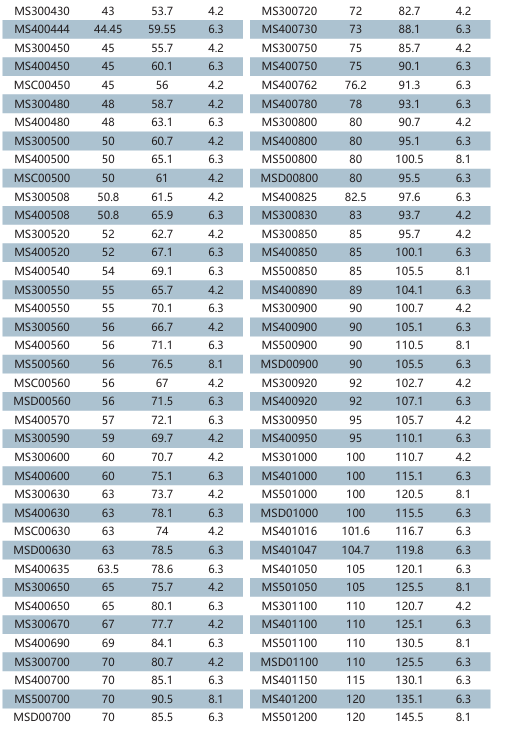

|Specification
|Comment & FAQ
Q1.What's the payment term?A: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, West Union,VISA,Paypal is also accepted.
Q2.What is the normal lead time for product orders?
A: Generally it is 5-7days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3. What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.
Q4. why should you buy from us not from other suppliers?
A:OEM&ODM Service Offered ,Provide high quality products with competitive price. Professional QC team control.
Delivery the goods on time
Q5.Can we get a sample for reference?
A: Samples can be sent to you to check the quality, but you should pay for the postage.The charge can be returned when there is an firm order.
Q6.How to check the quality of the bulk order?
A1: We provide preproduction samples before mass production for all customers if needed.
A2: We accept third party inspection such as S G S, TUV, INTERTEK, BV, etc.
Q7. Do you use any international standards for the rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, tolerances as per ISO3302, ISO2768, etc.
Q8.What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, FPM(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.
|
Certification
Click here to edit your content.
|
