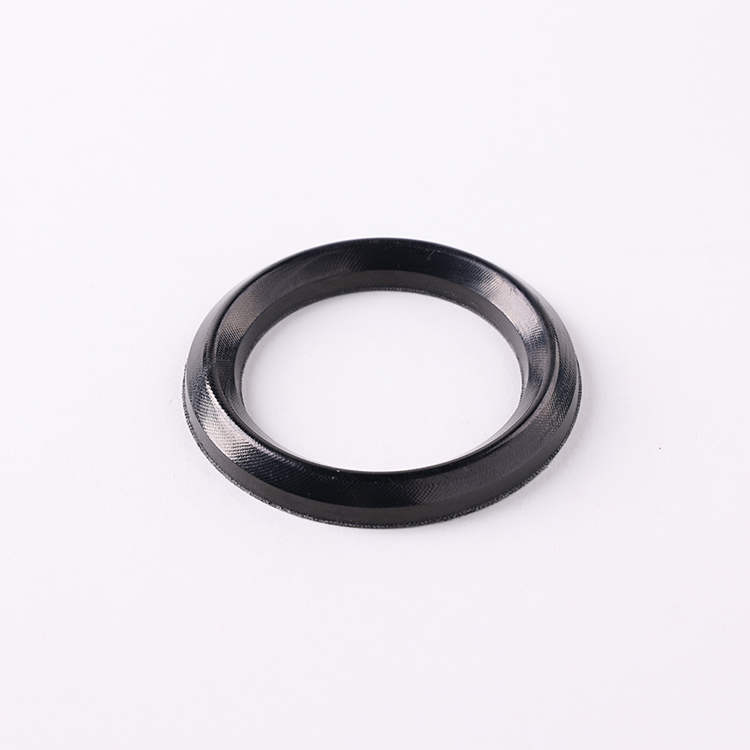

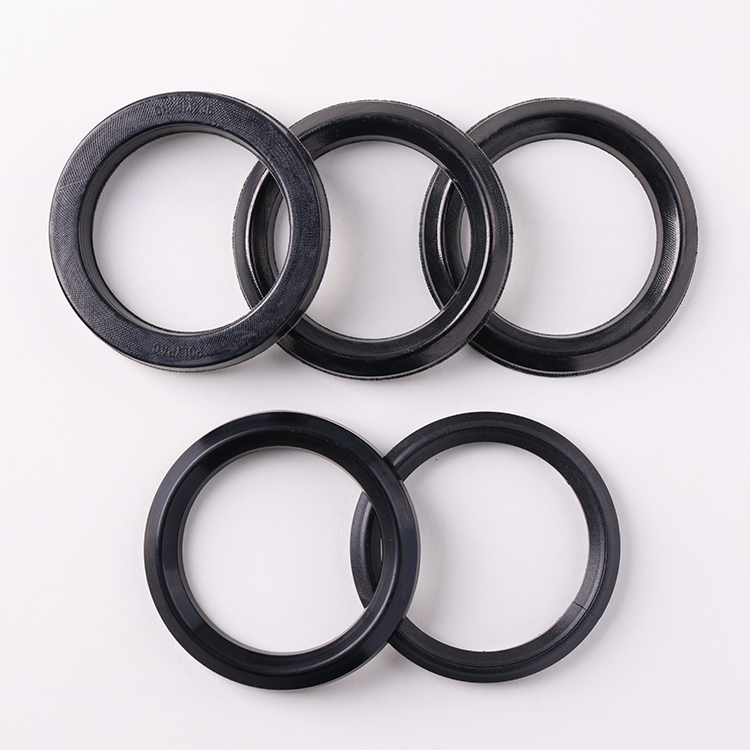

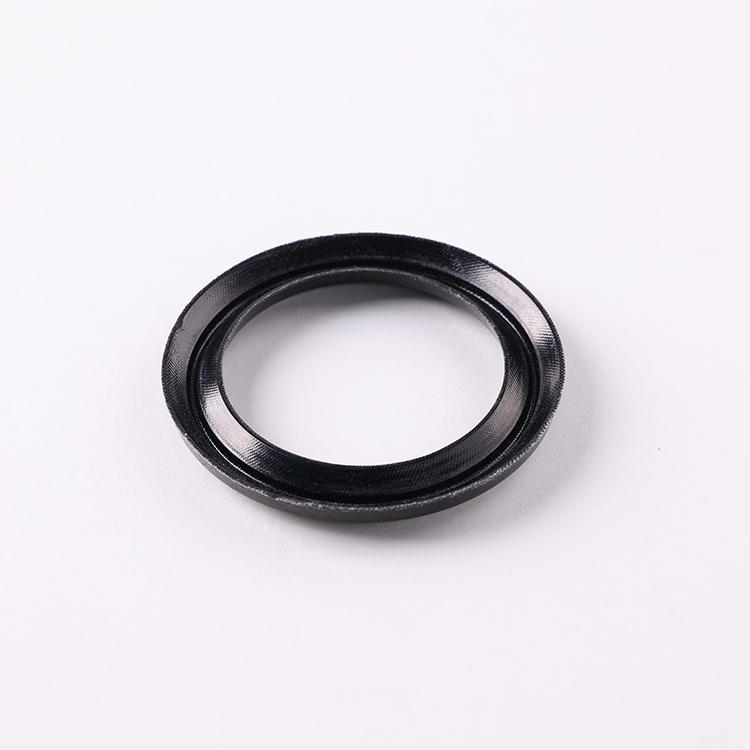

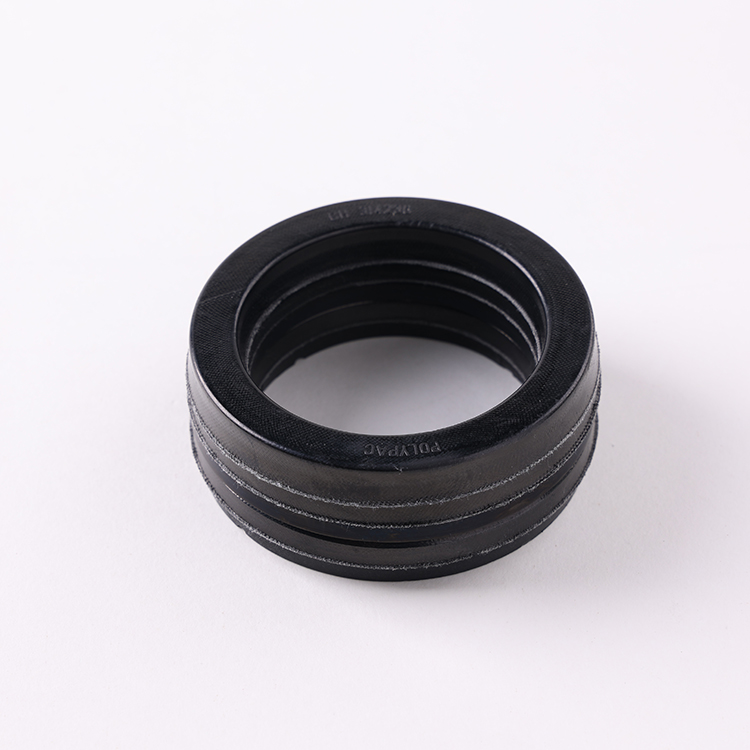

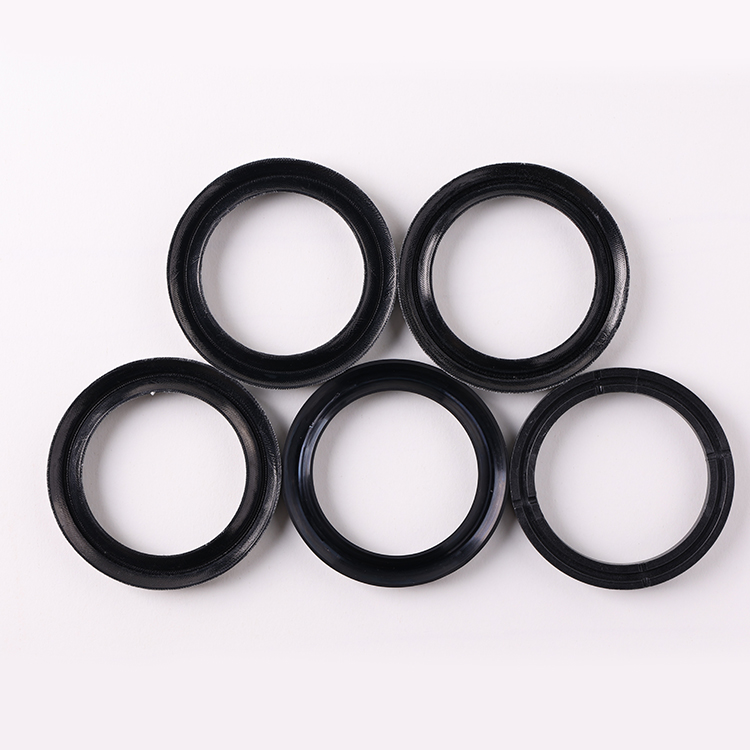

MV series High-Pressure Single-Acting Hydraulic Rod Seal V-Shaped Ring Fabric Reinforced Chevron Rings

|

 Design introduction

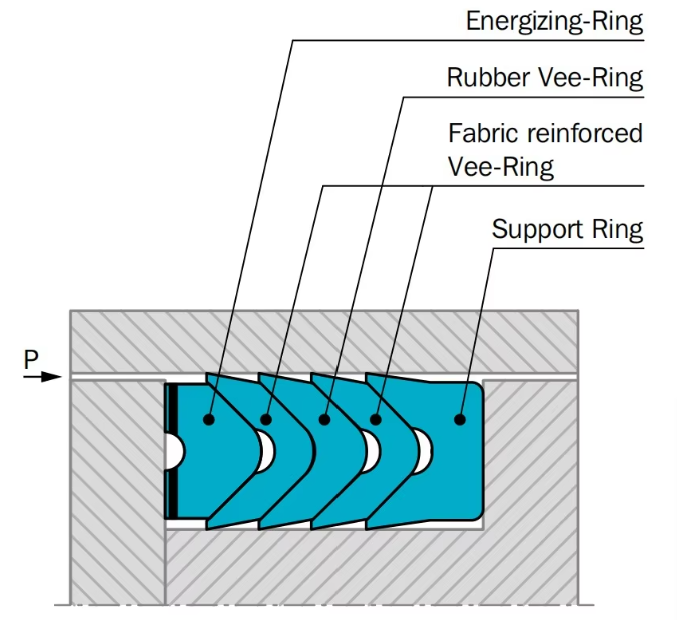

The support ring or base ring guides and sustains the other "V" shaped rings for best performance. Special versions provide incorporated anti-extrusion rings, either on the inner or outer side, for rod or piston applications .In standard version the support ring is manufactured in cotton fabric reinforced rubber, for a good anti-extrusion resistance..

Advantages

• Exceptional wear resistance

• Pre-load adjustment capability

• Excellent behaviour in harsh conditions

• Rod-seal replacement without complete cylinder dismantling possible

• Long service life




|

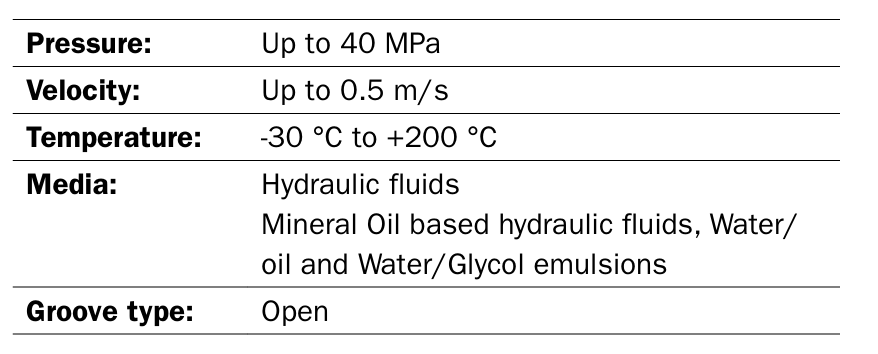

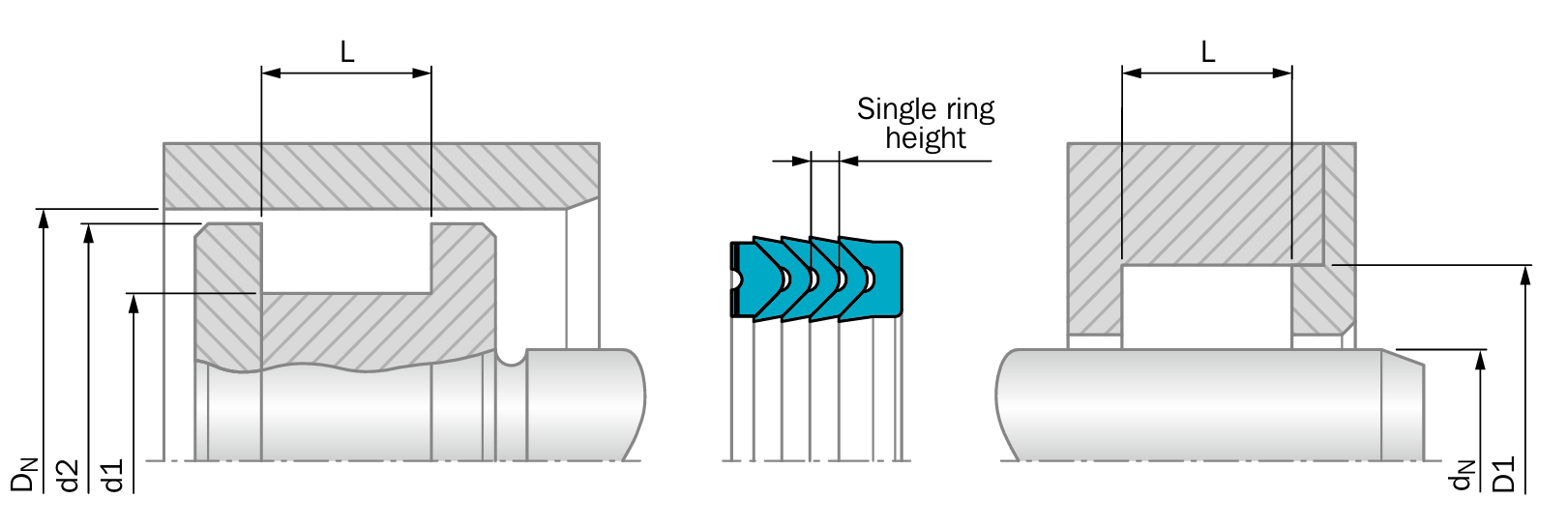

 OPERATING CONDITIONS & Installation recommendation

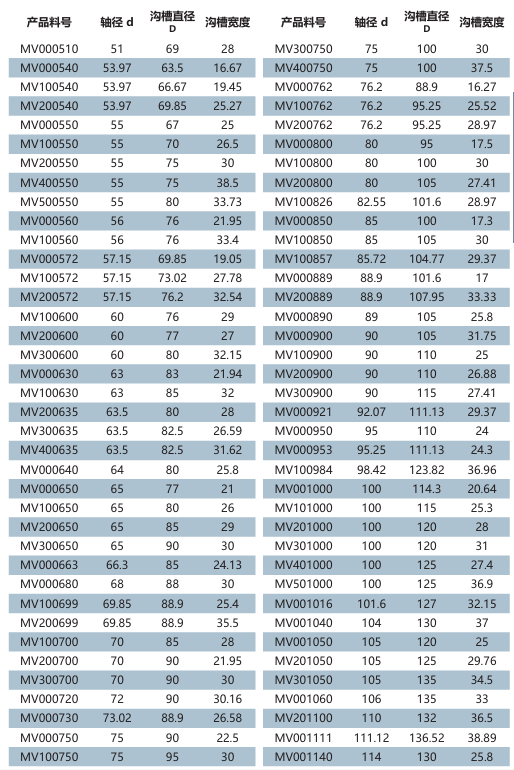

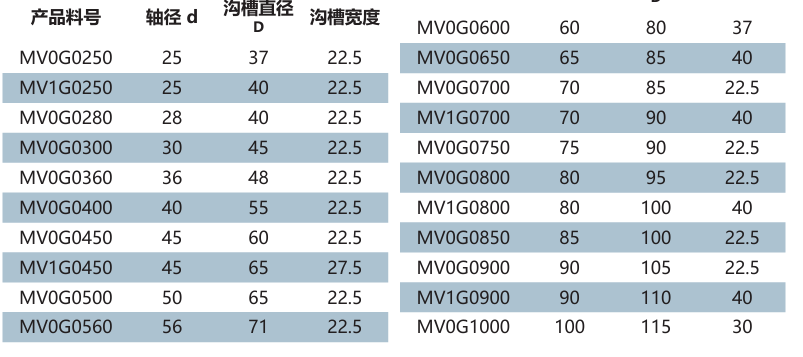

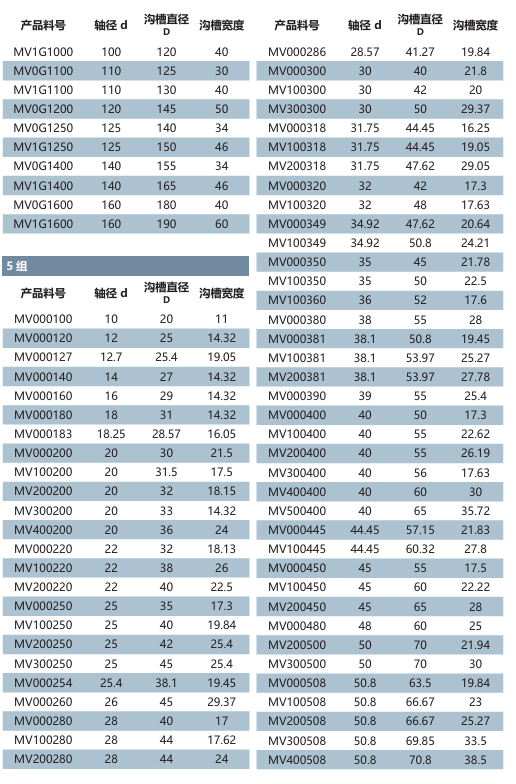

|Specification

|Comment & FAQ

Q1.What's the payment term?

A: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, West Union,VISA,Paypal is also accepted.

Q2.What is the normal lead time for product orders?

A: Generally it is 5-7days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3. What is your standard packing?

A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.

Q4. why should you buy from us not from other suppliers?A:OEM&ODM Service Offered ,Provide high quality products with competitive price.Professional QC team control.Delivery the goods on time

Q5.Can we get a sample for reference?

Q1.What's the payment term?A: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, West Union,VISA,Paypal is also accepted.

Q2.What is the normal lead time for product orders?
A: Generally it is 5-7days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q3. What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.

Q4. why should you buy from us not from other suppliers?
A:OEM&ODM Service Offered ,Provide high quality products with competitive price. Professional QC team control.
Delivery the goods on time

Q5.Can we get a sample for reference?
A: Samples can be sent to you to check the quality, but you should pay for the postage.The charge can be returned when there is an firm order.

Q6.How to check the quality of the bulk order?
A1: We provide preproduction samples before mass production for all customers if needed.
A2: We accept third party inspection such as S G S, TUV, INTERTEK, BV, etc.

Q7. Do you use any international standards for the rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, tolerances as per ISO3302, ISO2768, etc.

Q8.What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, FPM(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.

|
