TSI
HSCO
-30 °C to +100 °C
ISO9001
Mineral oil-based hydraulic fluids, flame retardant hydraulic fluids, environmentally friendly hydraulic fluids (bio-oils) and others, depending on seal and elastomer material.
Up to 40 MPa
PU/PE+Rubber（NBR/FKM）
Rotary Seal
Shanghai China
OEM
1Year
1Year

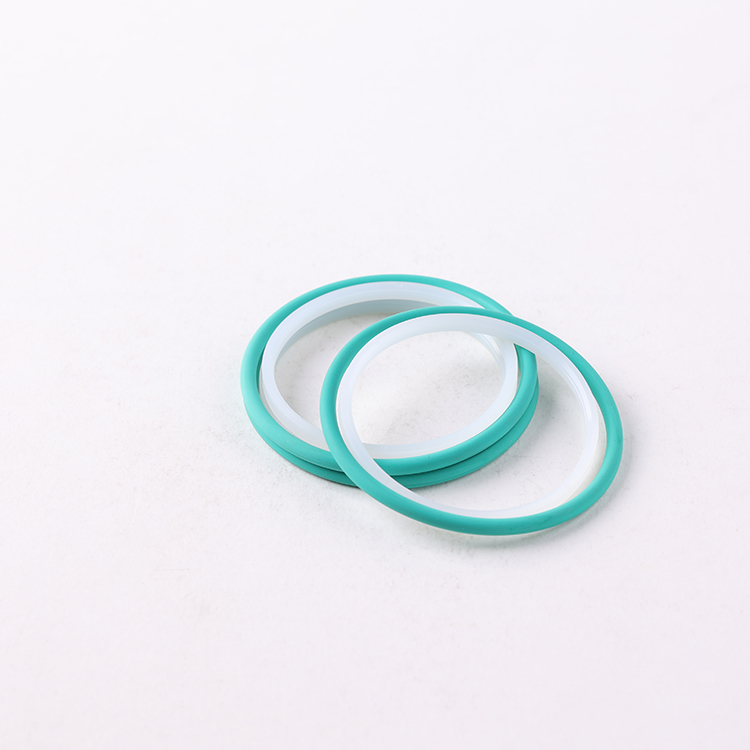

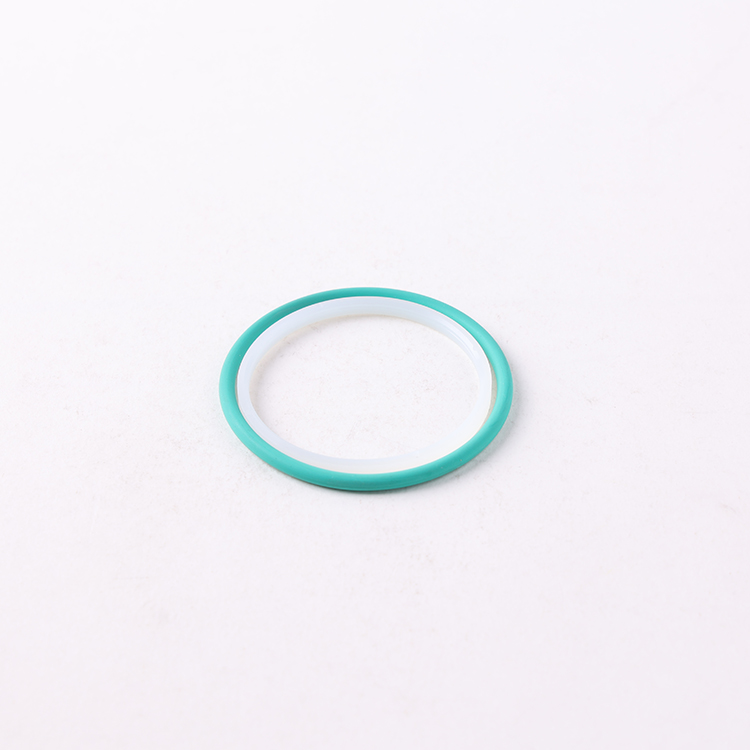

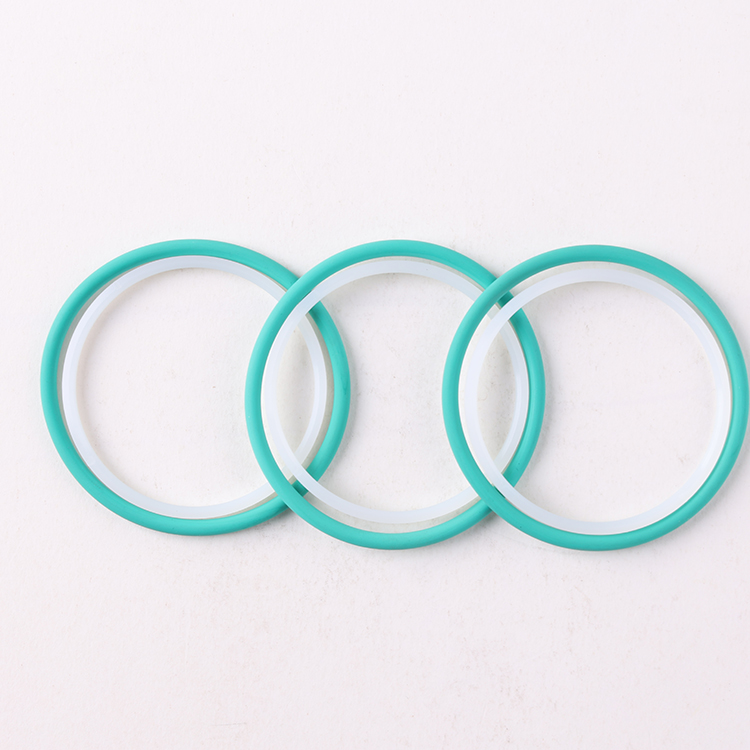

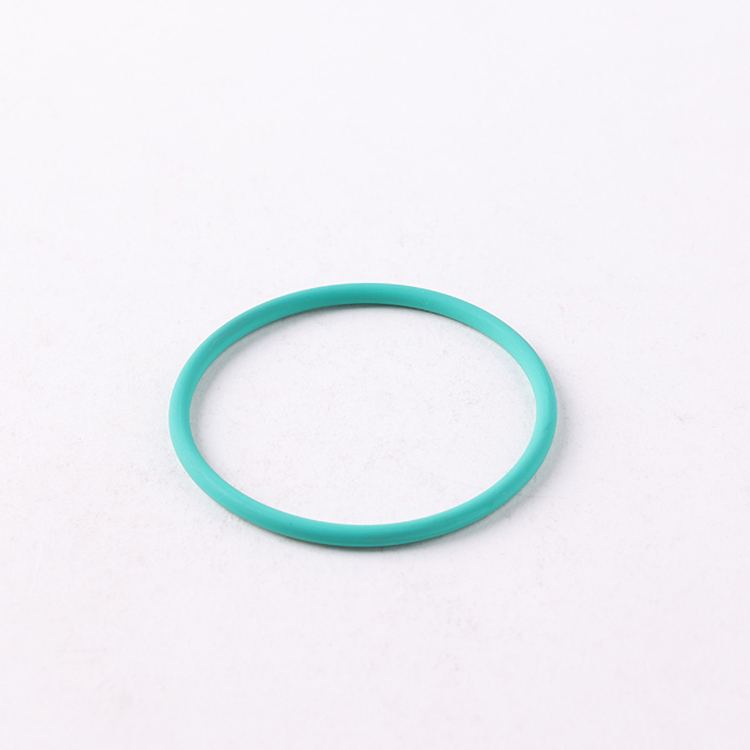

TSI Series Rotary Seal
-- Shafts, axles and rotary transmission lead-throughs Rotary indexing tables
Customizable
Cylinder
Up to 6.5 MPa x m/s
Standanrd
Customizable
| Availability: | |
|---|---|
| Quantity: | |
|

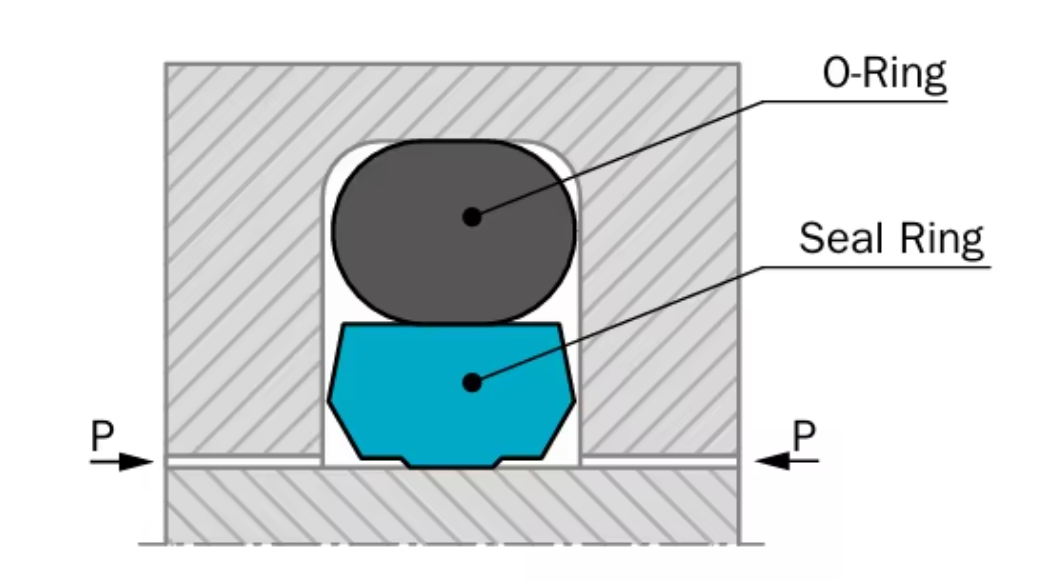

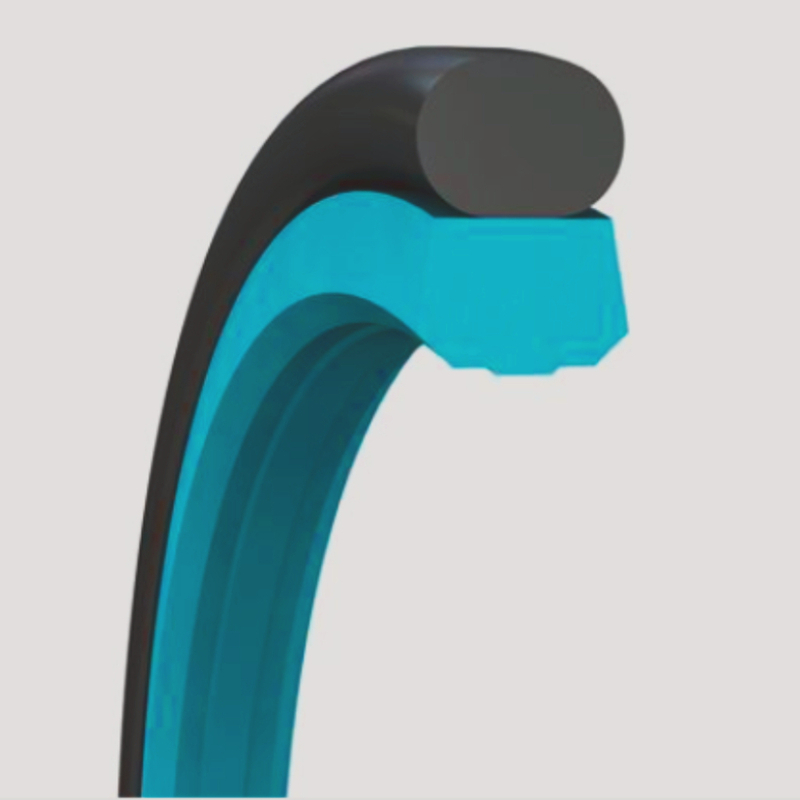

Design introduction
It consists of a seal ring of PU/PE material and is activated by an O-Ring as an elastic energizing element. The contact surface profile of the seal ring is specially designed for use with high pressures and at low sliding speeds.
Advantages
Available for shaft and bore sealing applications
Low to high pressure
Low friction
Stick-slip-free starting, no sticking in operation
High abrasion resistance and dimensional stability
Simple groove design, small groove dimensions
|

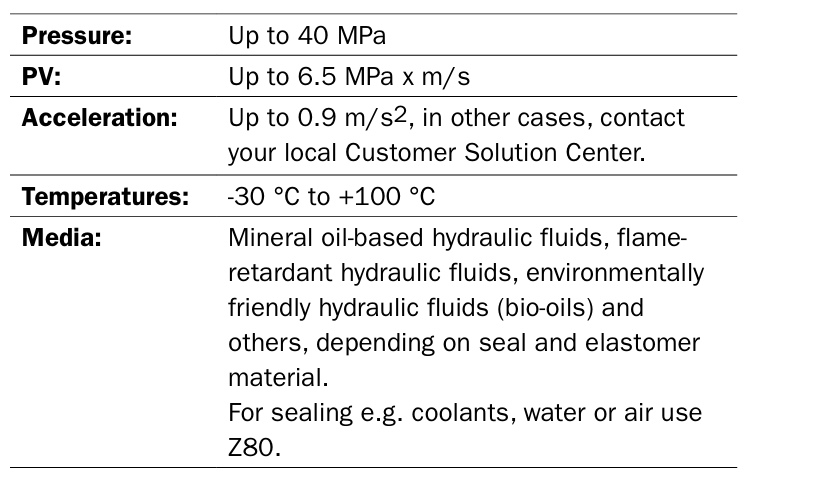

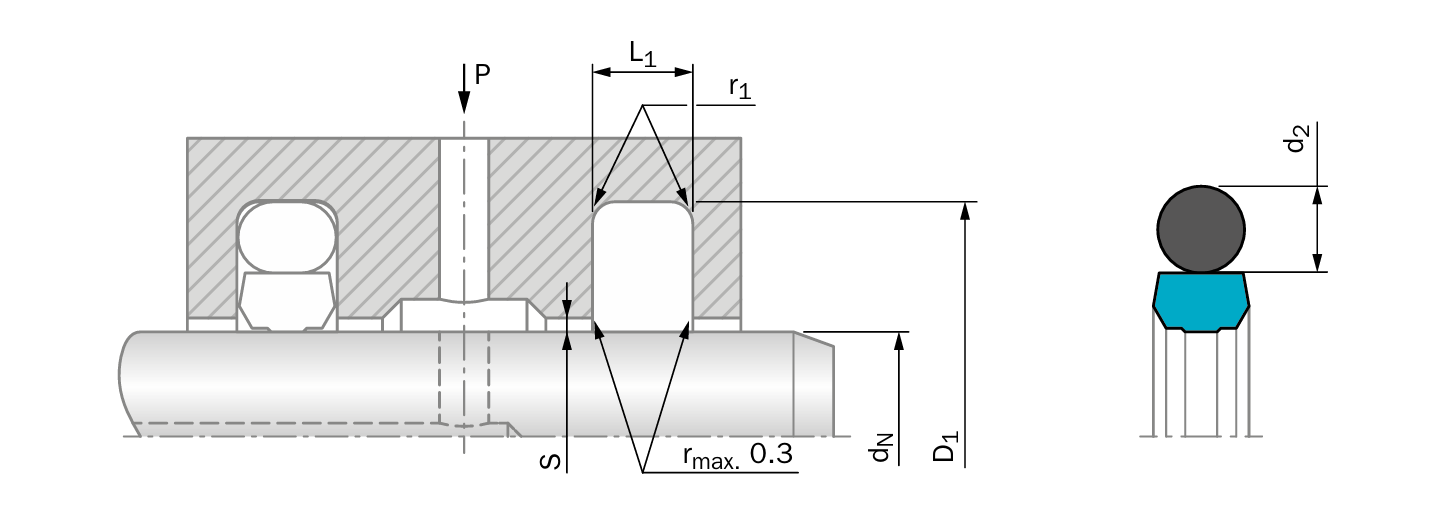

OPERATING CONDITIONS & Installation recommendation

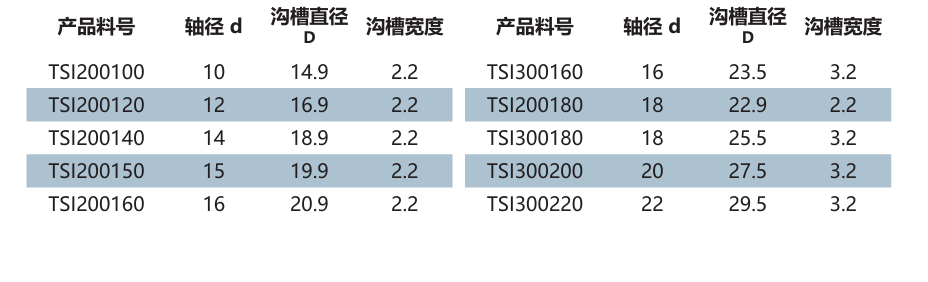

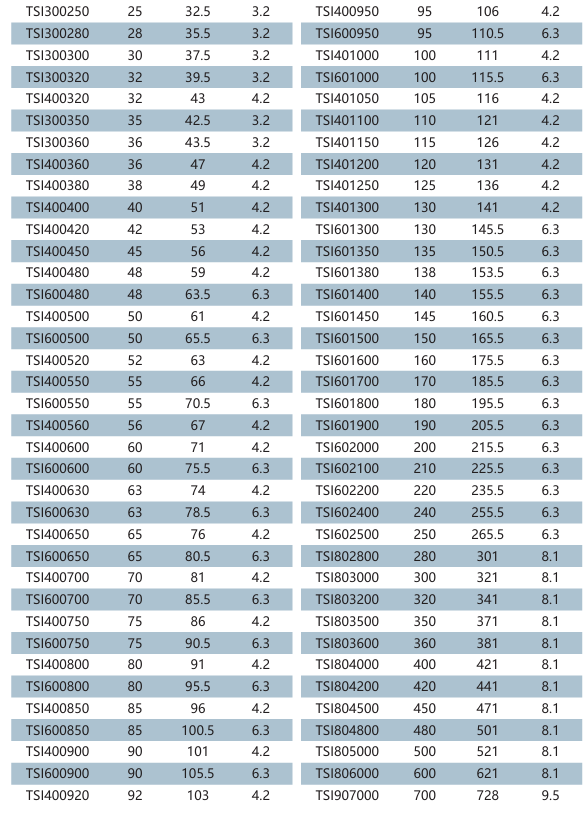

|Specification
|Comment & FAQ
Q1.What's the payment term?
A: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, West Union,VISA,Paypal is also accepted.
A: Generally it is 5-7days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3. What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.
Q4. why should you buy from us not from other suppliers?
A:OEM&ODM Service Offered ,Provide high quality products with competitive price. Professional QC team control.
Delivery the goods on time
Q5.Can we get a sample for reference?
A: Samples can be sent to you to check the quality, but you should pay for the postage.The charge can be returned when there is an firm order.
Q6.How to check the quality of the bulk order?
A1: We provide preproduction samples before mass production for all customers if needed.
A2: We accept third party inspection such as S G S, TUV, INTERTEK, BV, etc.
Q7. Do you use any international standards for the rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, tolerances as per ISO3302, ISO2768, etc.
Q8.What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, FPM(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.
|
