WDD
HSCO
-45 °C to +200 °C
ISO9001
Mineral oil-based hydraulic fluids, flame retardant hydraulic fluids, environmentally friendly hydraulic fluids (bio-oils), phosphate ester, water and others, depending on temperature
Up to 35 MPa
PTFE(PU)+NBR/FKM
Piston Seal
Shanghai China
OEM
1Year
1Year

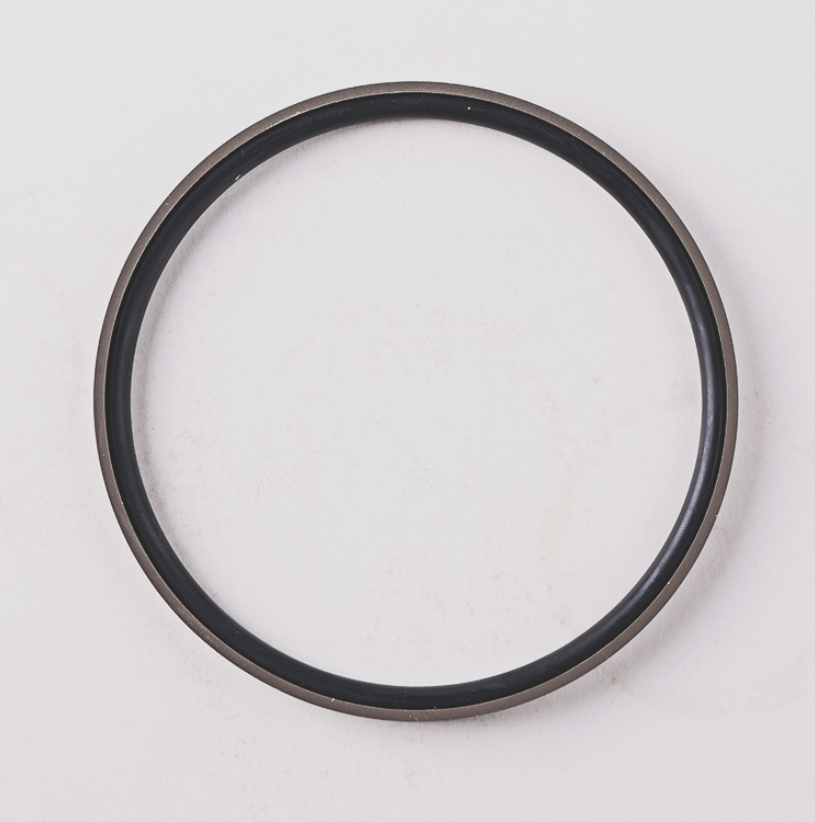

WDD Series Piston Seal
Machine tools-- Handling devices Valves Chemical process equipment
Customizable
Cylinder
Up to 15 m/s
Standanrd
Customizable
| Availability: | |
|---|---|
| Quantity: | |
|
Design introduction

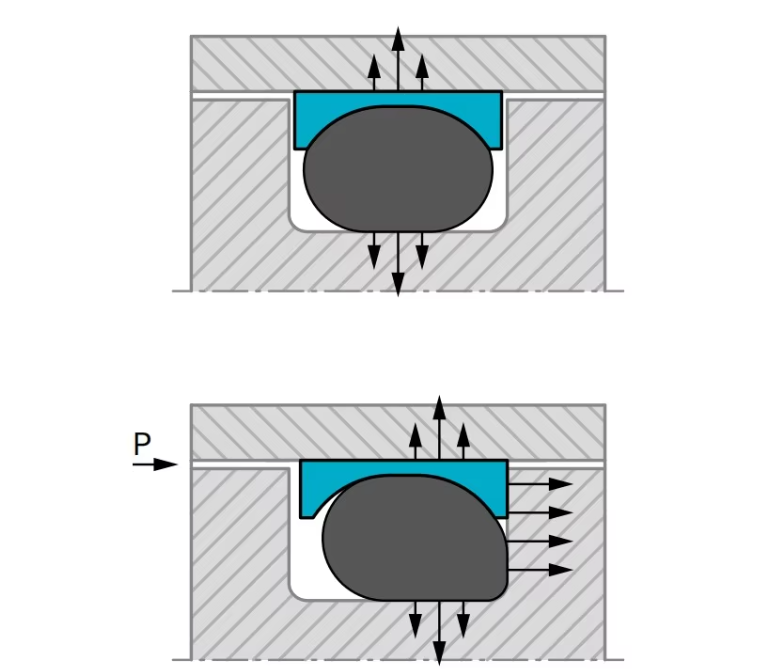

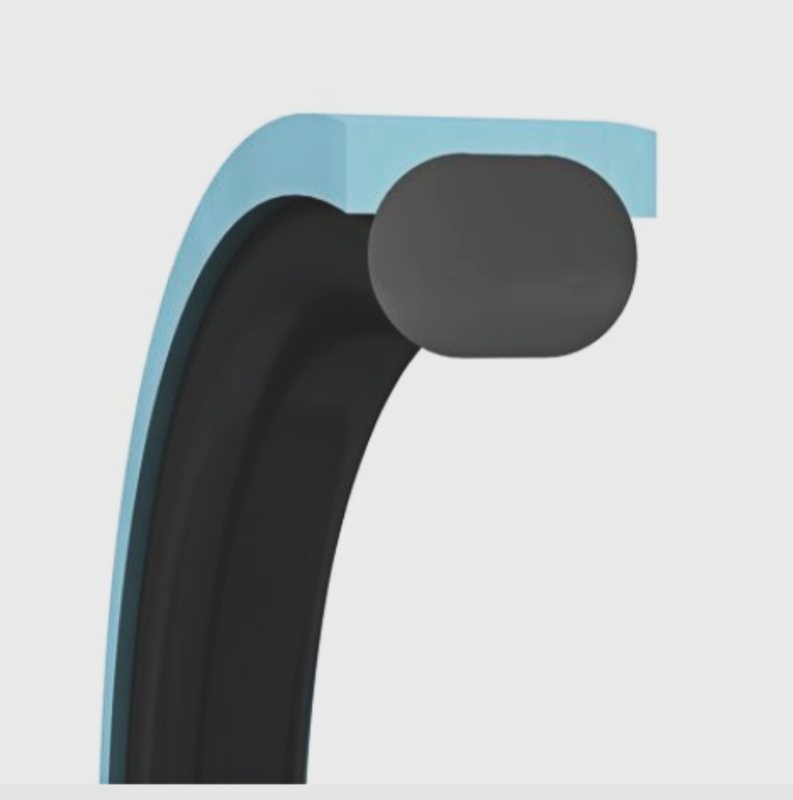

WDD combines the flexibility and responsiveness of O-Rings with the wear and friction characteristics of the PTFE materials in dynamic applications. The double-acting performance of the seal follows from the symmetrical cross section which allows the seal to respond to pressure in both directions.Initial contact pressure is provided by radial compression of the O-Ring
Advantages
Compact groove dimensions and simple installation
Low friction without stick-slip
Resistance against wear and extrusion
Piston seals available for all diameters from 5 to 999.9 mm
Fits also groove dimensions per ISO 6194 and AS 4716
|

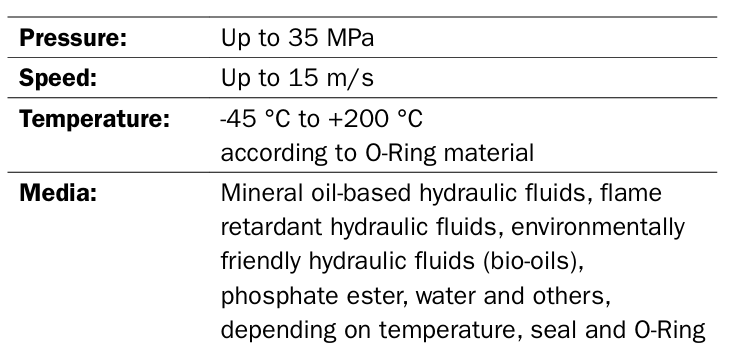

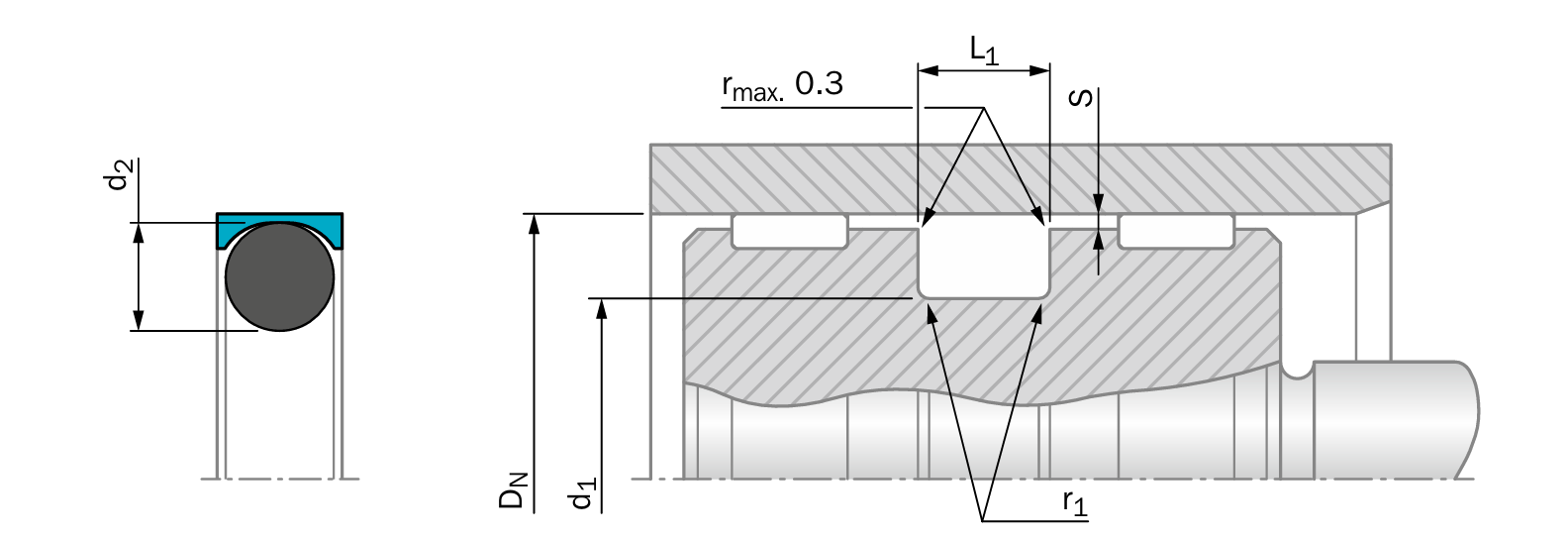

OPERATING CONDITIONS and Installation recommendation

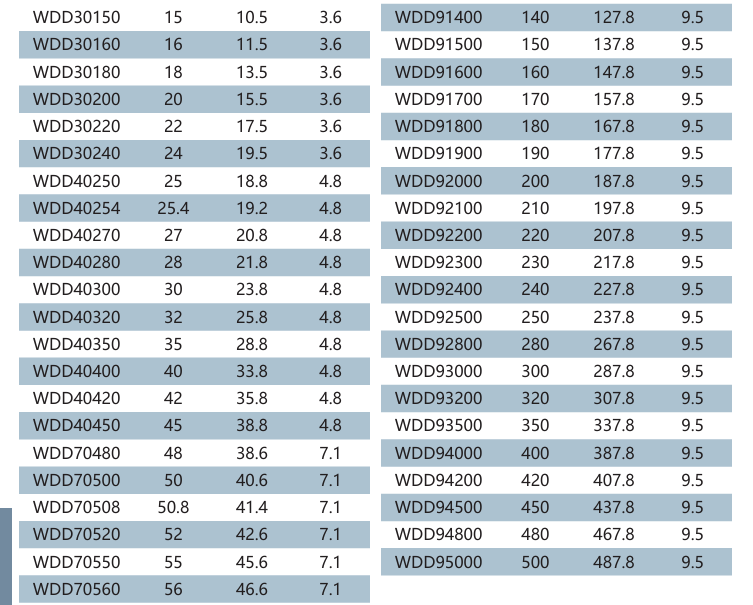

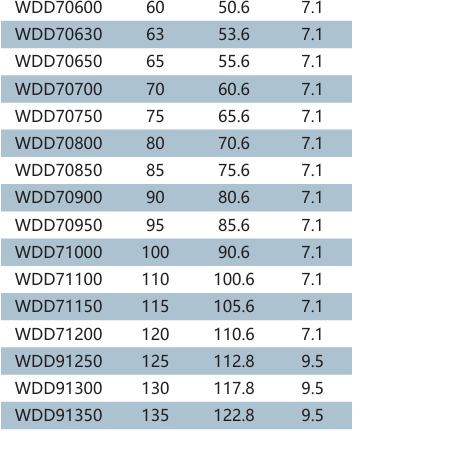

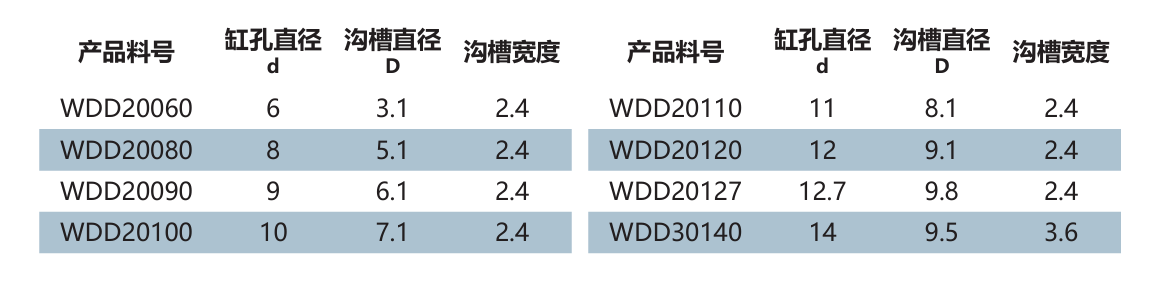

|Specification
|Comment & FAQ
Q1.What's the payment term?
A: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, West Union,VISA,Paypal is also accepted.
Q2.What is the normal lead time for product orders?
A: Generally it is 5-7days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3. What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.
Q4. why should you buy from us not from other suppliers?A:OEM&ODM Service Offered ,Provide high quality products with competitive price.Professional QC team control.Delivery the goods on time
Q5.Can we get a sample for reference?
Q2.What is the normal lead time for product orders?
A: Generally it is 5-7days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3. What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.
Q4. why should you buy from us not from other suppliers?
A:OEM&ODM Service Offered ,Provide high quality products with competitive price. Professional QC team control.
Delivery the goods on time
Q5.Can we get a sample for reference?
A: Samples can be sent to you to check the quality, but you should pay for the postage.The charge can be returned when there is an firm order.
Q6.How to check the quality of the bulk order?
A1: We provide preproduction samples before mass production for all customers if needed.
A2: We accept third party inspection such as S G S, TUV, INTERTEK, BV, etc.
Q7. Do you use any international standards for the rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, tolerances as per ISO3302, ISO2768, etc.
Q8.What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, FPM(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.
|
Certification
