WQ
HSCO
-30 °C to +200 °C
ISO9001
Mineral oil-based hydraulic fluids, flame retardant hydraulic fluids, environmentally friendly hydraulic fluids (bio-oils), phosphate ester, water and others, depending on temperature
Up to 60 MPa
PTFE+Rubber(NBR/FKM)
Piston Seal
Shanghai China
OEM
1Year
1Year

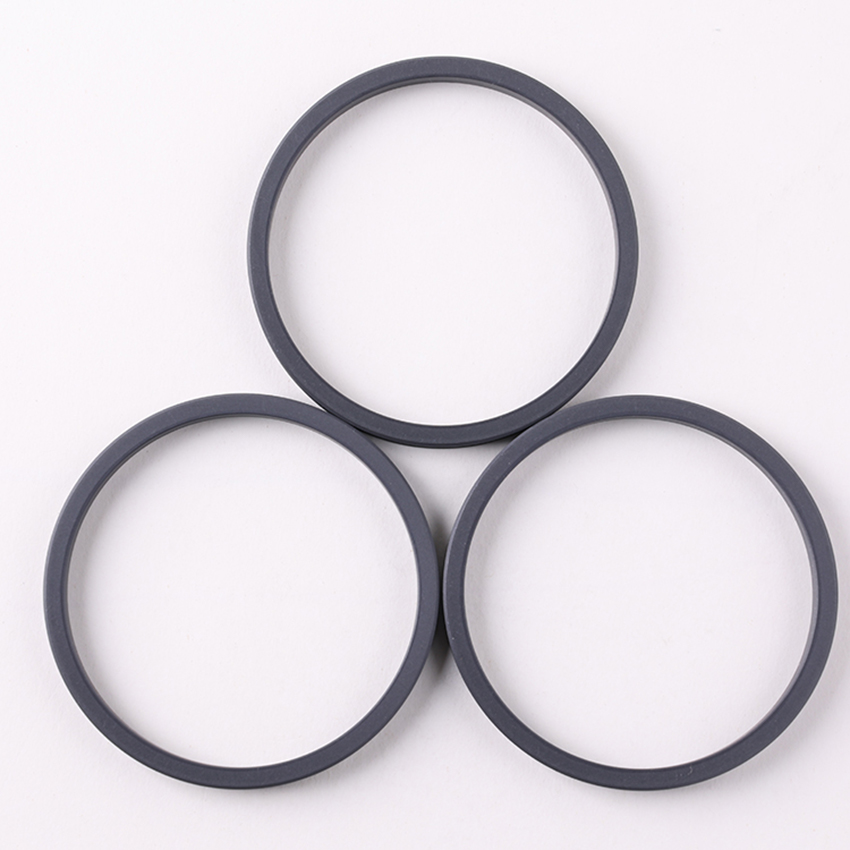

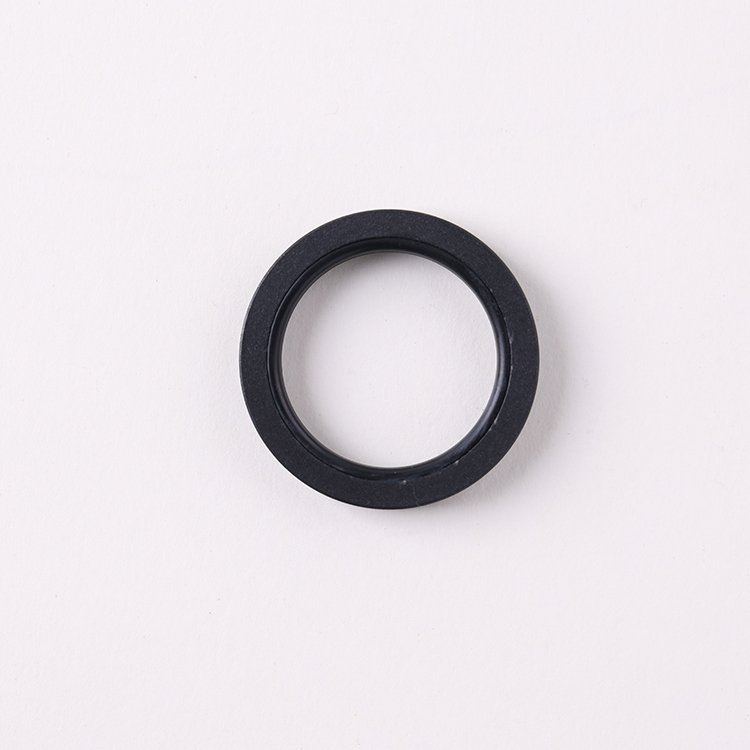

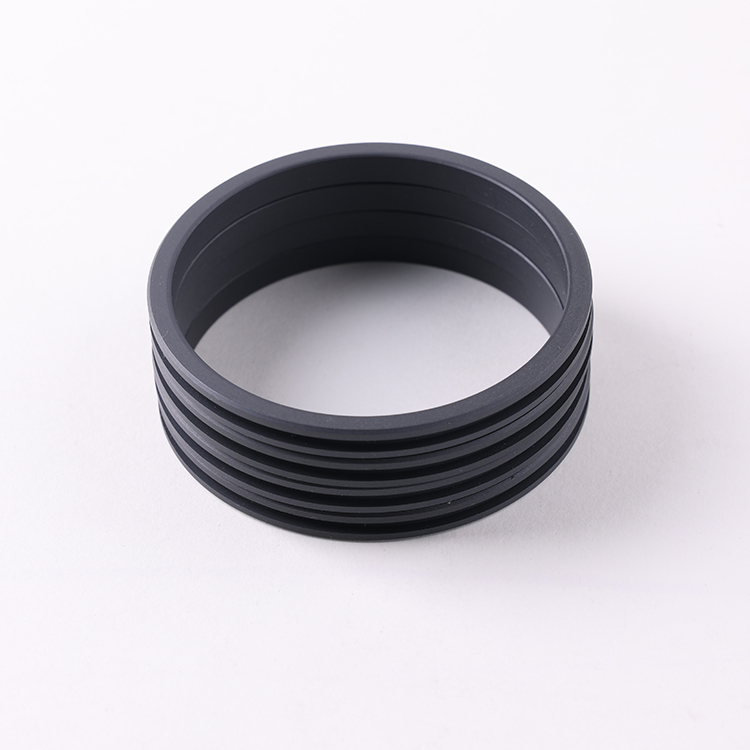

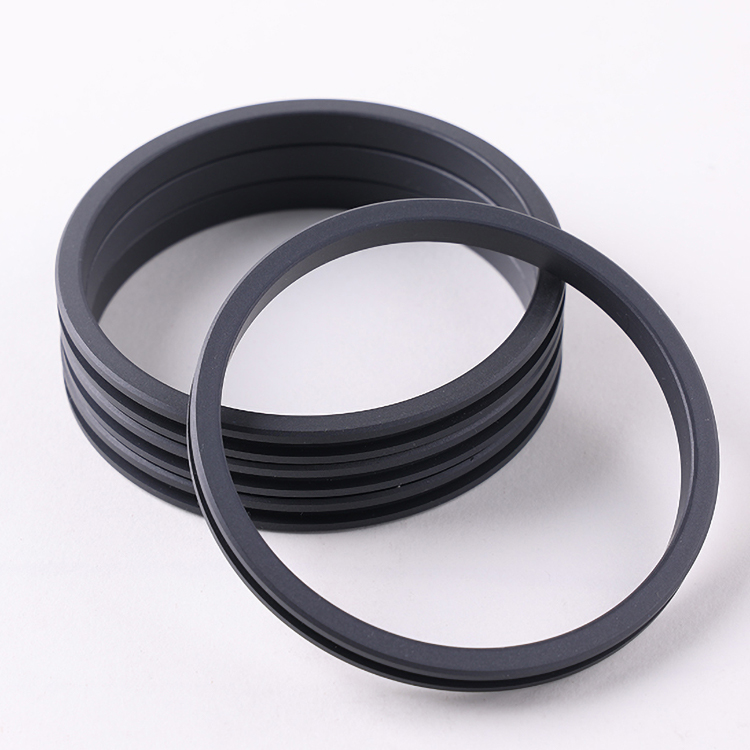

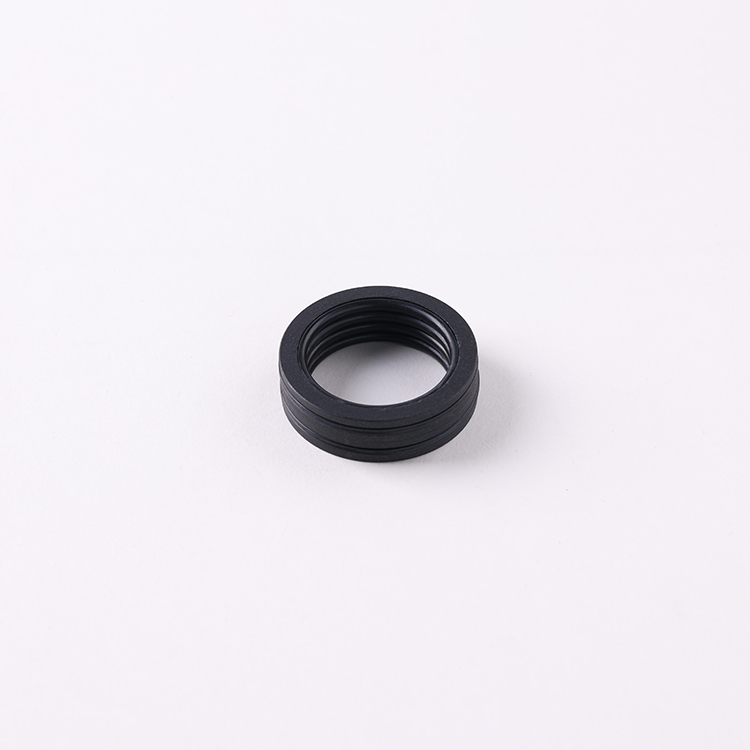

WQ Series Piston Seal
Mobil hydraulics -Cranes -Stabilizers
Customizable
Cylinder
Up to 3 m/s
Standanrd
Customizable
| Availability: | |
|---|---|
| Quantity: | |
|
Design introduction

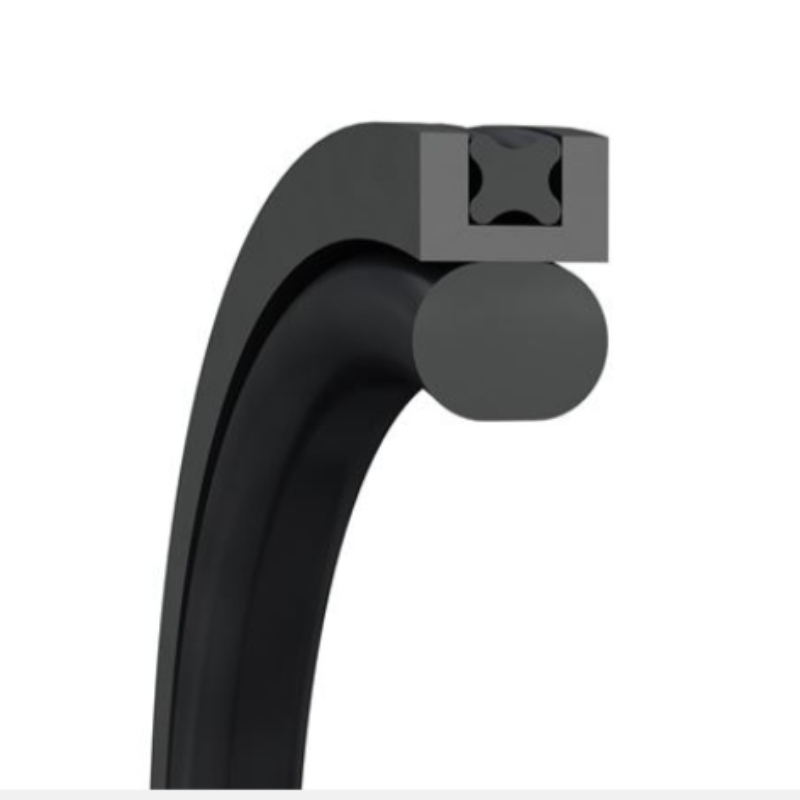

The particular characteristics of WQ are the seal profile with a defined seal edge and the use of two O-Rings as energizing elements to optimize the pressure profile and to reduce gas permeability
Advantages
High sealing effect
Double security through the combination of low-friction special materials with elastomer seals
Low gas permeation rate
Outstanding sliding properties, no stick-slip effect
Diameter from 25 to 700 mm
|

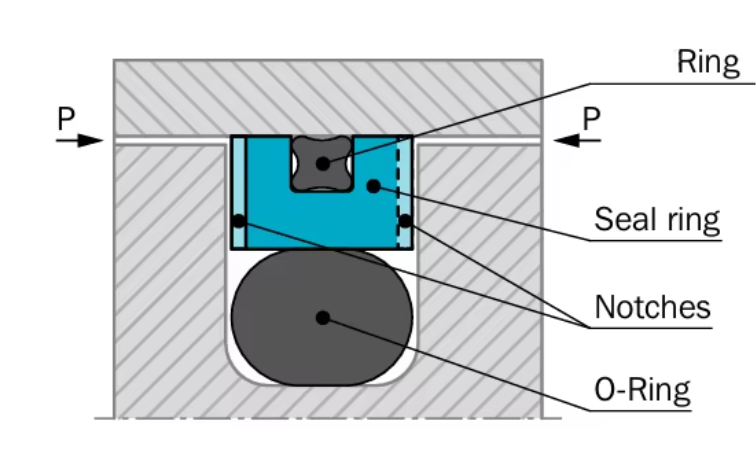

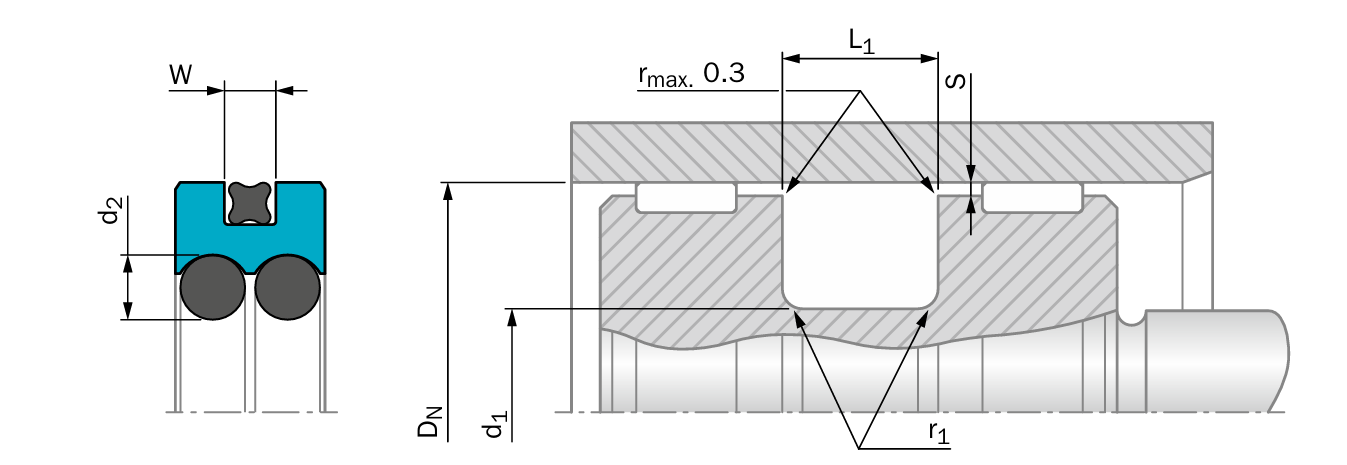

OPERATING CONDITIONS & Installation recommendation

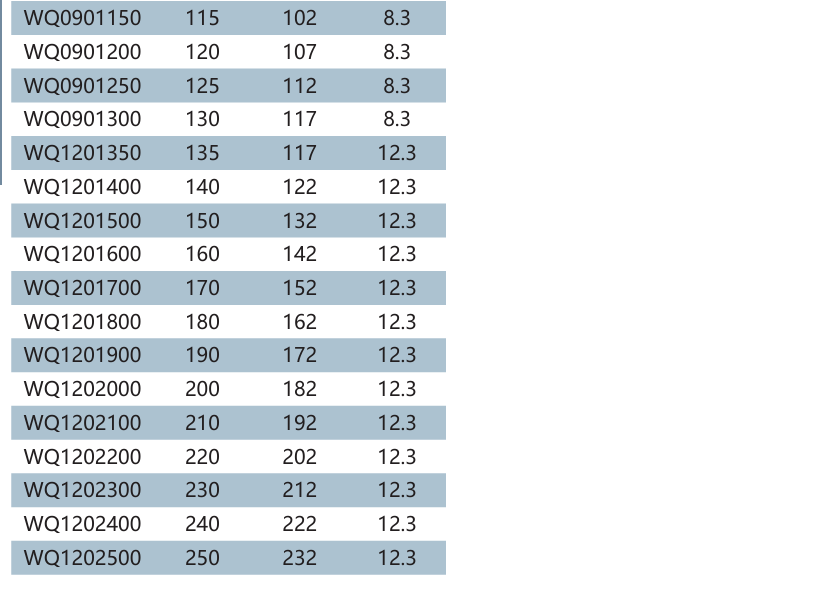

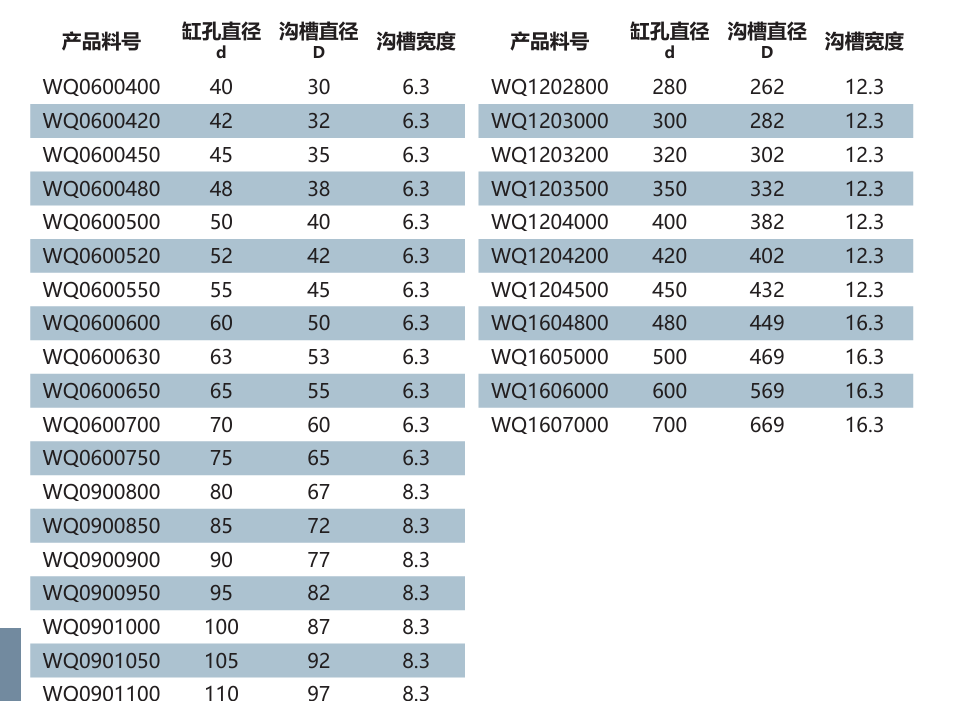

|Specification
|Comment & FAQ
Q1.What's the payment term?
A: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, West Union,VISA,Paypal is also accepted.
A: Generally it is 5-7days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3. What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.
Q4. why should you buy from us not from other suppliers?
A:OEM&ODM Service Offered ,Provide high quality products with competitive price. Professional QC team control.
Delivery the goods on time
Q5.Can we get a sample for reference?
A: Samples can be sent to you to check the quality, but you should pay for the postage.The charge can be returned when there is an firm order.
Q6.How to check the quality of the bulk order?
A1: We provide preproduction samples before mass production for all customers if needed.
A2: We accept third party inspection such as S G S, TUV, INTERTEK, BV, etc.
Q7. Do you use any international standards for the rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, tolerances as per ISO3302, ISO2768, etc.
Q8.What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, FPM(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.
|
